Description

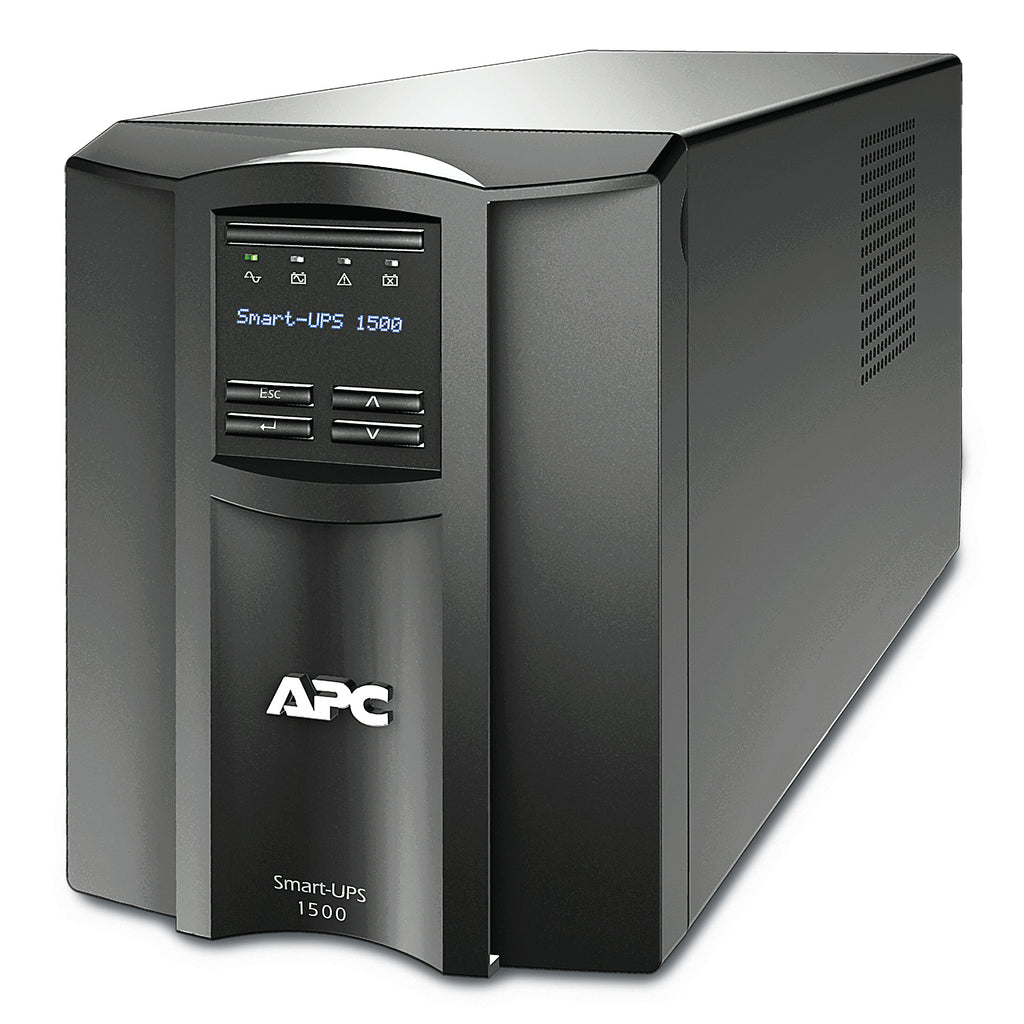

APC SMT1500IC, Line Interactive, 1.5 kVA, 1000 W, Sine, 151 V, 302 V
| Features | |
| UPS Topology | Line interactivity |
| output power capacity | 1.5 kVA |
| Output power | 1000 W |
| Waveform | Sinus |
| Input voltage voltage (min) | 151 V |
| Input voltage voltage (max) | 302 V |
| Input frequency | 50/60 Hz |
| output voltage voltage (min) | 220 V |
| Output voltage (max) | 240 V |
| output frequency | 50/60 Hz |
| Automatic Voltage Regulator (AVR) | Yes |
| Energy Surge Estimation | 459 J |
| Output voltage THD | 5% |
| Sound level | 45 dB |
| Surge Protection | Yes |
| Audible alarms | Yes |

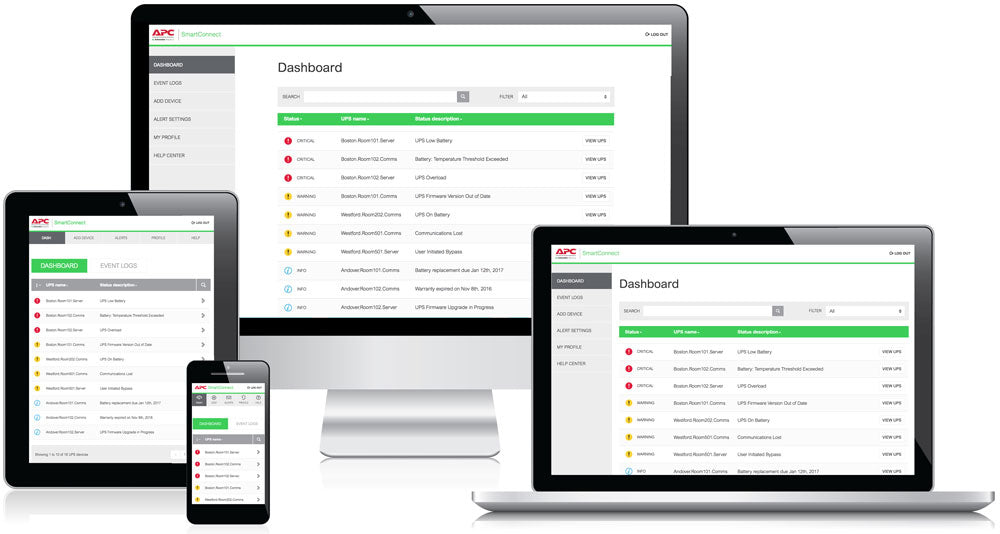

| Web-based management | Yes |
| Sound Alarm Modes | Battery mode alarm, Low battery alarm, Overload alarm |
| Automatic restart | Yes |
| Voltage compensation as a function of temperature | Yes |
| Connectivity | |

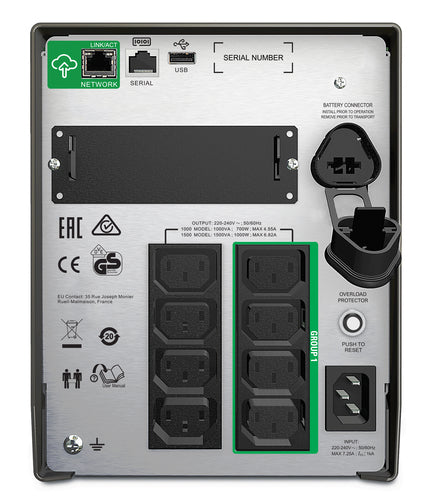

| AC Output Types | C13 Coupler, IEC Jumpers |
| Male plug | C14 coupler |
| Number of output sockets | 8 AC output(s) |

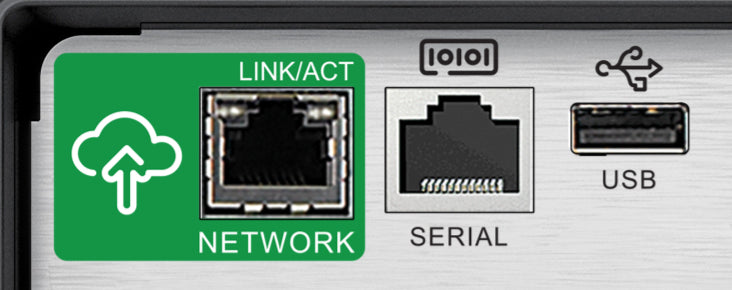

| USB port | Yes |
| Quantity of USB 2.0 Ports | 1 |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| Number of serial ports | 1 |
| Number of LAN ethernet ports (RJ-45) | 1 |
| SmartSlot | Yes |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Total battery life (max) | 5 year(s) |
| Battery recharge time | 3 h |
| Hot-swappable battery | Yes |
| Automatic battery test | Yes |
| Cold start | Yes |
| Design | |
| Format | Mini Tower |
| Product color | Black |
| Cable length | 1.83 m |
| Screen type | LCD |
| Seers | Yes |
| Certification | CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, UL 1778, VDE |
| Environmental conditions | |
| Operating temperature | 0 - 40 °C |
| Non-operating temperature | -15 - 45 °C |
| Operating relative humidity (HH) | 0 - 95% |
| Relative humidity level (storage) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Technical details | |
| Sustainability certificates | Green Premium, RoHS |
| Weight and dimensions | |
| Width | 171 mm |
| Depth | 439 mm |
| Height | 219 mm |
| Weight | 24.1 kg |
| Package width | 328 mm |
| Package depth | 595 mm |
| Package height | 376 mm |
| Package weight | 27.2 kg |
| Packaging information | |
| Cables included | RS-232, USB Cable |
| Quick Installation Guide | Yes |
| Resource CD | Yes |

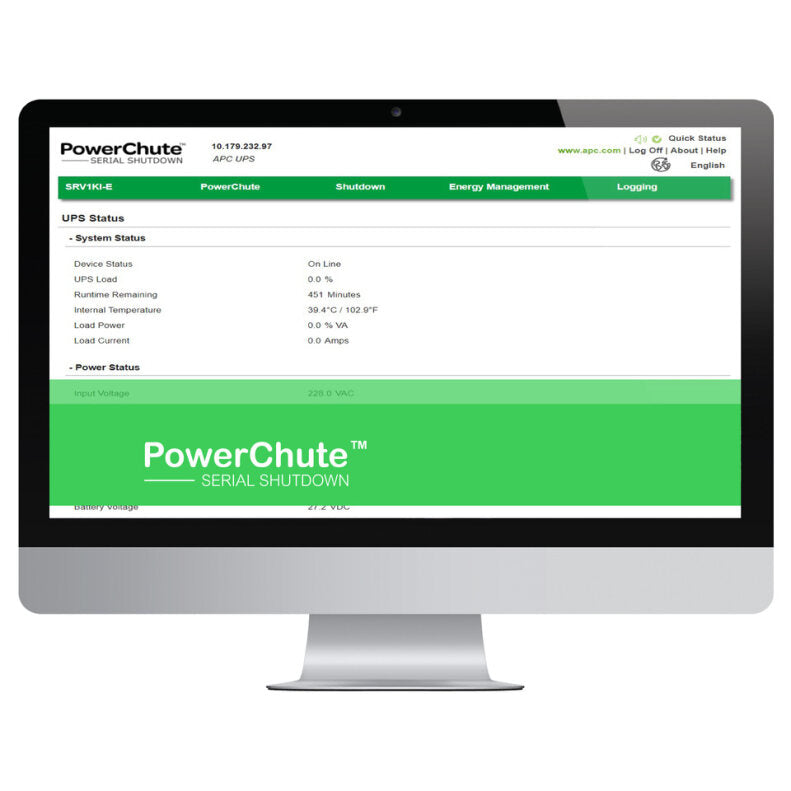

| CD Software | Yes |
| Logistics data | |
| Products per pallet | 12 piece(s) |
| Harmonized System Code | 85078000 |
