Habotest HT208A True RMS Digital Clamp Meter



Price:
Sale price41,50€
Stock:
In stock (44 units), ready to be shipped

Description

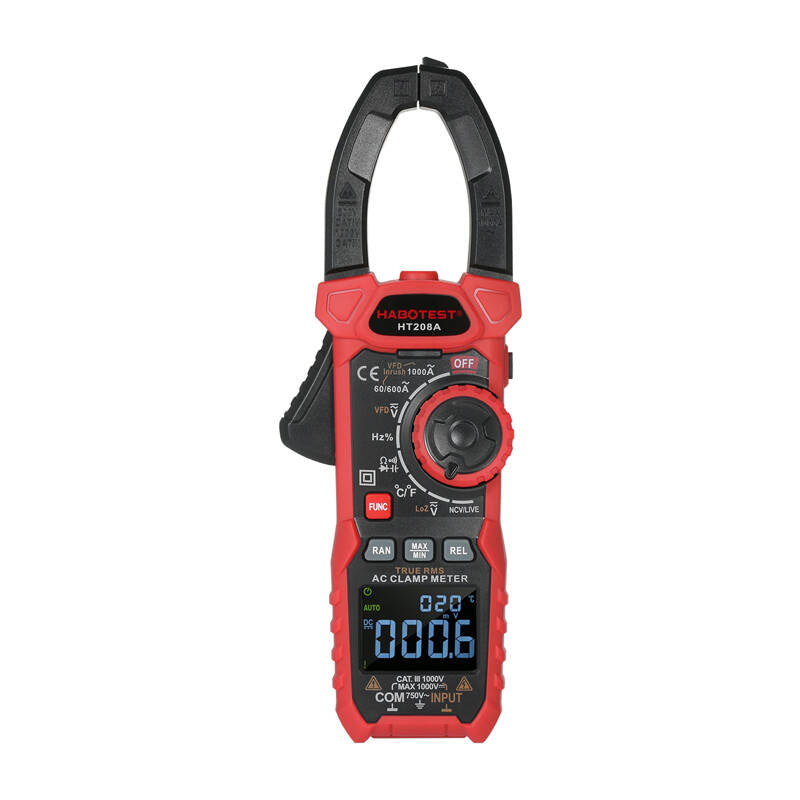

Habotest HT208A digital clamp meter

HT208A is a practical device with which you can check the value of various parameters, for example, AC voltage and current, resistance, temperature, inrush current and many others. The product provides accurate measurements, and the results are displayed on the LCD screen. The HT208A also features a flashlight for convenient operation in dark rooms.

Multifunctional device

You will use the HT208A in many situations. You can check the value of AC voltage, resistance, capacitance, temperature, frequency, NCV, etc. Furthermore, you can also check continuity and true RMS value.

Safe use

The device is completely safe to use. You can, for example, detect voltage without touching, thanks to the NCV sensors. The meter's jaws, thanks to their maximum width of 40 mm, allow you to make measurements comfortably without damaging the circuit. The flashlight function ensures comfortable and safe work in dark rooms.

Additional features

When it receives an electromagnetic signal, the NCV sensor will send an audible alarm, and if the voltage or current is high, the LCD screen color will turn orange. What's more, the device will automatically turn off to save power if no action is performed within 15 min.

Function HT208A HT208D
DC voltage

6V/60V/600V/1000V

±(1%+3)

6V/60V/600V/1000V

±(1%+3)

AC voltage

6V/60V/600V/750V

±(1.2%+3)

6V/60V/600V/750V

±(1.2%+3)

DC current n / A

60A/600A/1000A ±(2.5%+5)

AC current

60A/600A/1000A

±(3.0%+5)

60A/600A/1000A

±(3.0%+5)

Resistance

600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ

±(1.0%+3)

600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ

±(1.0%+3)

Capacity

10nF/100nF/1μF/10μF/100μF/1mF/10mF ±(4.0%+3),

100mF ±(5.0%+5)

10nF/100nF/1μF/10μF/100μF/1mF/10mF ±(4.0%+3),

100mF ±(5.0%+5)

Frequency

10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz

±(1.0%+3)

10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz

±(1.0%+3)

Duty

1%~99%

±(1.0%+2)

1%~99%

±(1.0%+2)

Temperature

-40°C~1000°C

±(1.0%+3)

-40°C~1000°C

±(1.0%+3)

Counts 6000 6000

Auto/manual range

Yes Yes
Continuity Yes, LED and buzz Yes, LED and buzz
Diode Yes Yes
Data hold Yes Yes
NCV Yes, LED and buzz Yes, LED and buzz
Double color backlight Yes Yes
Flashlight Yes Yes

Low battery indicator

Yes Yes
Auto power off Yes Yes
True RMS Yes Yes
LPF Yes Yes
MAX/MIN Yes Yes
V-LoZ No Yes
Power 2x AA batteries (in the box) 2x AA batteries (in the box)
Weight about 380 g about 380 g
Size 240 x 85 x 40 mm 240 x 85 x 40 mm
Jaw size 44 mm 44 mm
Safety

EN61010-1, -2-030 EN61010-2-033,

EN61326-1 CAT III 1000V, CATIV 600V

EN61010-1, -2-030 EN61010-2-033,

EN61326-1 CAT III 1000V, CATIV 600V
