Description

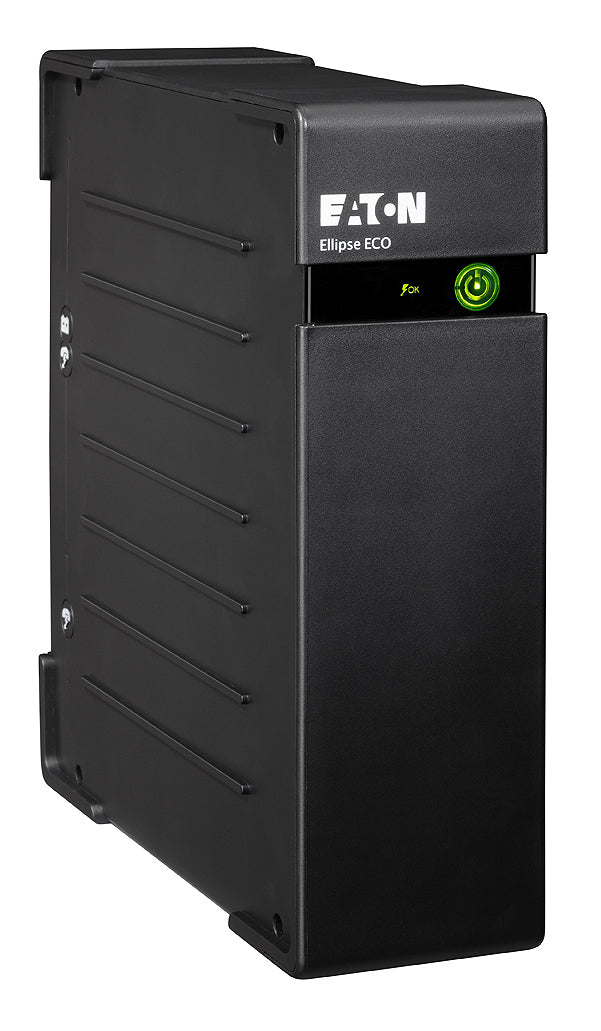

The Eaton Ellipse ECO is an extra-flat inverter with integrated surge protector, complying with IEC 61643-1. Thanks to its EcoControl function, available on USB models, the Eaton Ellipse ECO provides you with up to 25% energy savings compared to previous generation inverters.
| Features | |
| UPS topology | Day before |
| output power capacity | 0.65kVA |
| Output power | 400W |
| Voltage voltage at input (min) | 161V |
| Voltage voltage at input (max) | 284V |
| Input frequency | 50/60Hz |
| voltage voltage at output (min) | 220V |
| Voltage voltage at output (max) | 240V |
| Emergency Power Cutoff (EPO) Button | No |
| Protection against overvoltage | Yes |
| Surge protection functions | Fax, Modem, Network, Telephone |
| Audible alarms | Yes |
| Audible alarm modes | Battery replacement |
| Connectivity | |
| AC Output Types | Type E |
| Male plug | C14 coupler |
| Number of output sockets | 4 AC outlet(s) |
| Quantity of USB 2.0 Ports | 1 |
| Modem ports (RJ11) | 1 |
| Number of LAN ethernet ports (RJ-45) | 1 |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Typical backup time at half load | 9 mins |
| Hot-swappable battery | No |
| Automatic battery test | Yes |
| Cold start | Yes |
| Design | |
| Format | Tower |
| Product color | Black |
| Rack Capacity | 2U |
| LEDs | Battery replacement |
| Security | IEC 62040-1, IEC 60950-1, IEC 62040-2, CB Report, CE mark, IEC 61643-1 |
| Weight and dimensions | |
| Width | 81mm |
| Depth | 235mm |
| Height | 263mm |
| Weight | 3.6kg |
| Packaging information | |
| Software provided | Eaton Intelligent Power |
| Logistics data | |
| Harmonized System Code | 85078000 |
| Other features | |
| Input connection type | FR |
| Mac Compatibility | Yes |
| Rated output voltage | 220-240V |
| Rated input voltage | 230V |
| Compatible operating systems | Windows 7/Vista/XP\r Mac OS Linux |
| Overload protection | Yes |
