Description

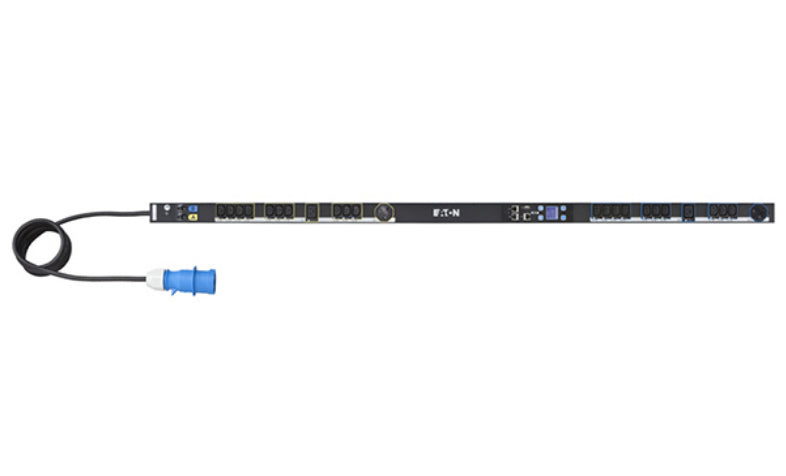

Eaton EMIB32, With in-line measurement, 0U, Three-phase, Rack-mountable, vertical, Black
| Design | |
| PDU Types | With online measurement |
| Rack capacity | 0U |
| Kind | Three-phase |
| Format | To put on rack |
| Mounting grid | Yes |
| Assembly | vertical |
| Product color | Black |
| Cable color | Black |

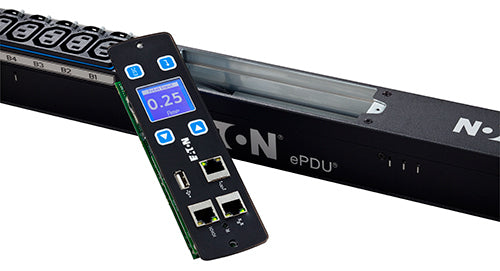

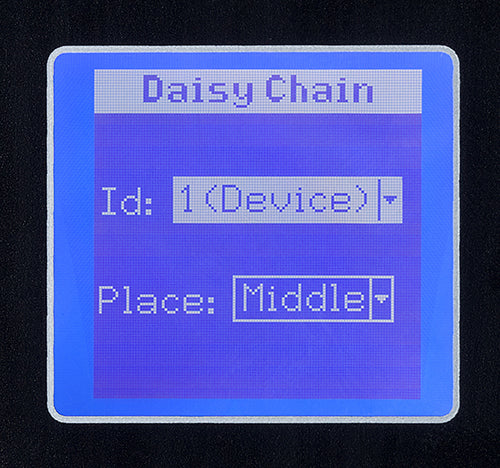

| Screen | LCD |
| Connectivity | |
| Number of output sockets | 30 AC outlet(s) |
| AC Output Types | Coupler C13, Coupler C19 |
| Male plug | IEC 60309 |
| Number of serial ports | 1 |
| Number of LAN ethernet ports (RJ-45) | 1 |
| Output Connections | 24 x C13 & 6 x C19 |
| Features | |
| LEDs | Yes |
| Cable length | 3m |
| Certification | CB, CE, EN 60950-1:2006/A11:2009/A1:2010/A12:2011 IEC 60950-1, EN 61000-6-2:2005 EN 61000-6-4:2007+A1:2011 EN 50581: 2012, REACH, WEEE ISO 9001:2008 / ISO 14001:2004 |
| Management features | |
| Monitoring | Tension |
| Supported Network Protocols | HTTP, HTTPS, SSL, FTP, SMTP, DNS, DHCP, LDAP, RADIUS |
| Management protocols | SNMP, Telnet |
| Scalable firmware | Yes |
| Firmware upgrade via | Network, USB |
| Power | |
| Rated input voltage | 400V |
| Intensity (max.) | 32A |
| AC input frequency | 50Hz |
| Rated output voltage | 230V |
| Maximum input current per phase | 32A |
| Max power | 22000W |
| Weight and dimensions | |
| Width | 52mm |
| Depth | 53mm |
| Dimensions (LxDxH) | 52 x 53 x 1604mm |
| Height | 1604mm |
| Weight | 6kg |
| Packaging information | |
| Package width | 200mm |
| Package depth | 214mm |
| Package height | 1730mm |
| Package Contents | |
| Cables included | LAN (RJ-45) |
| Rack mount kit | Yes |
| Environmental conditions | |
| Operating temperature | 0 - 60°C |
| Technical details | |
| Sustainability certificates | RoHS |
