Description

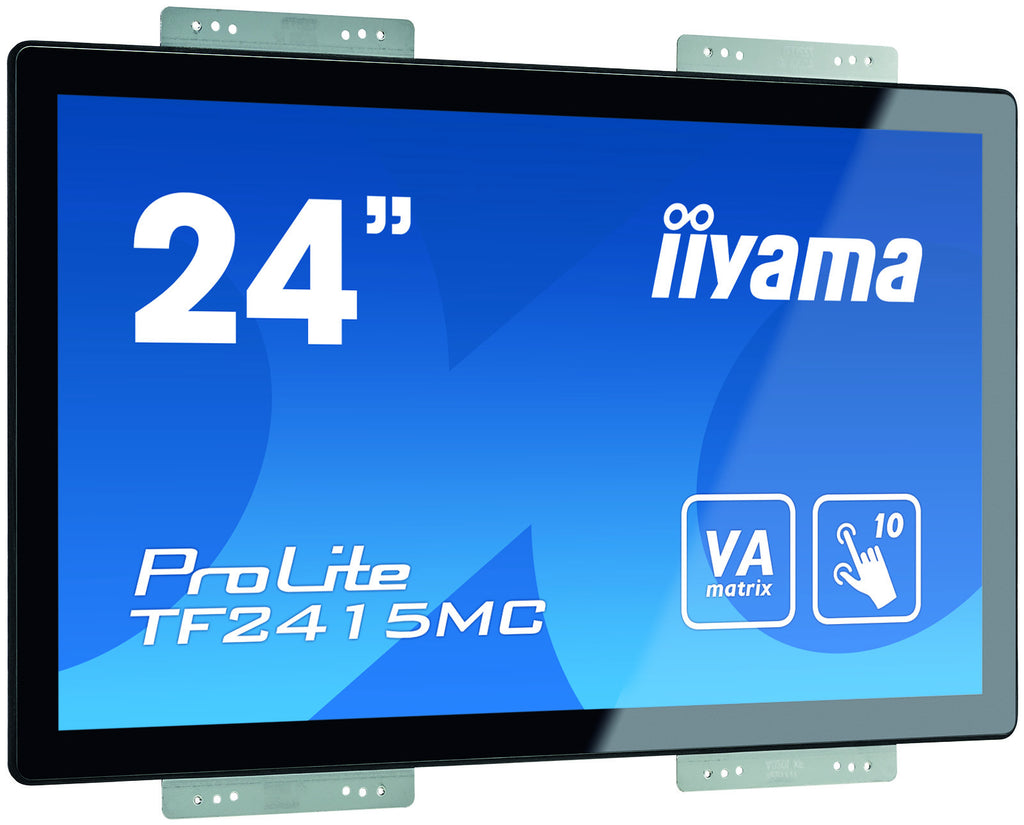

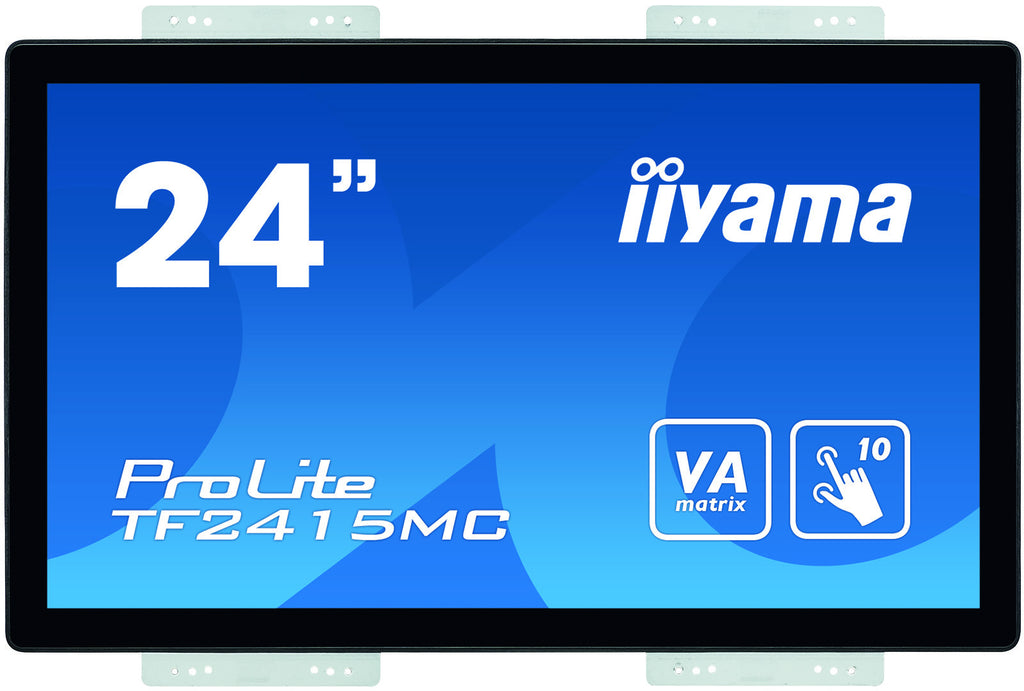

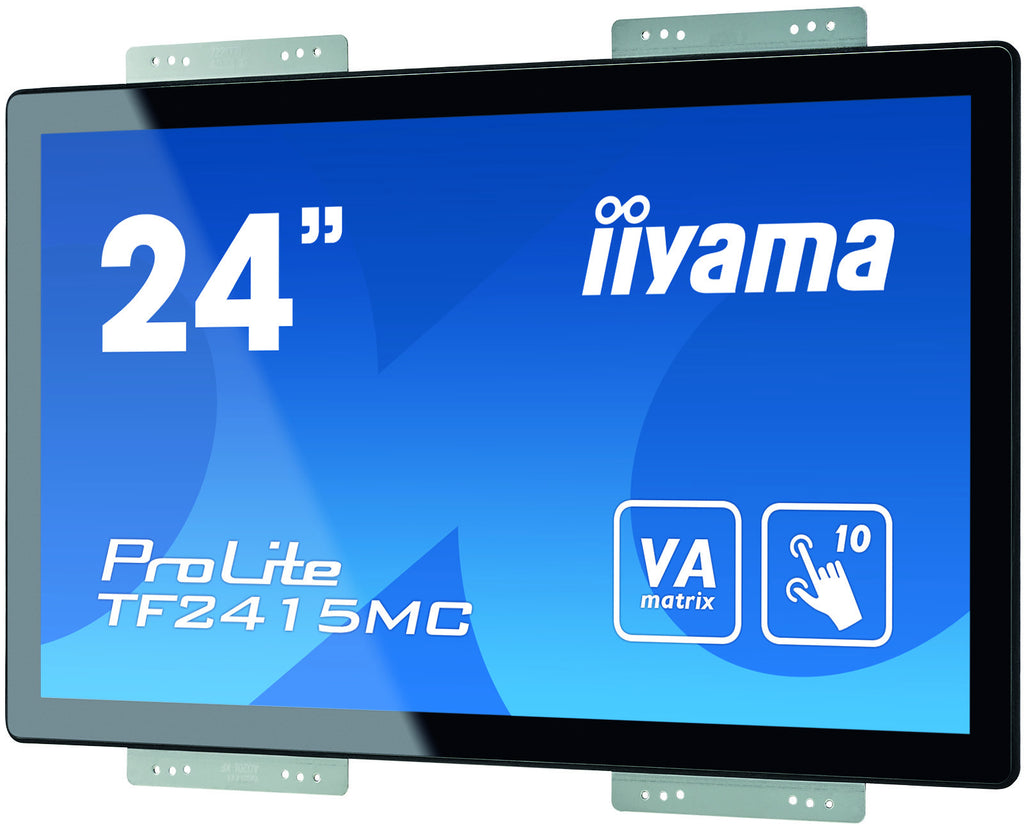

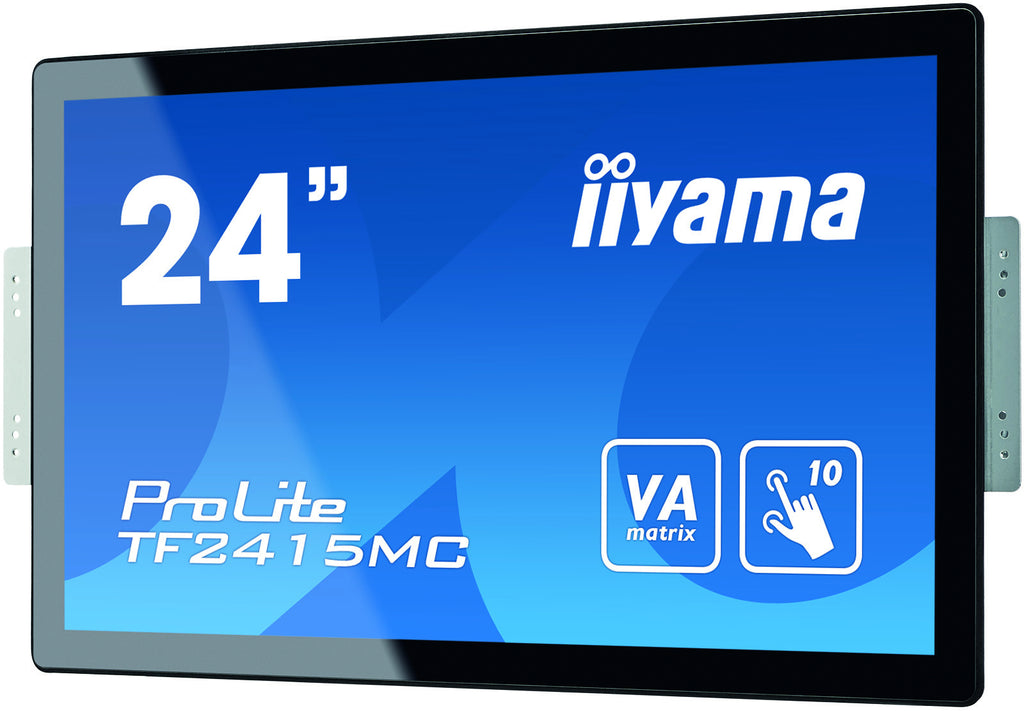

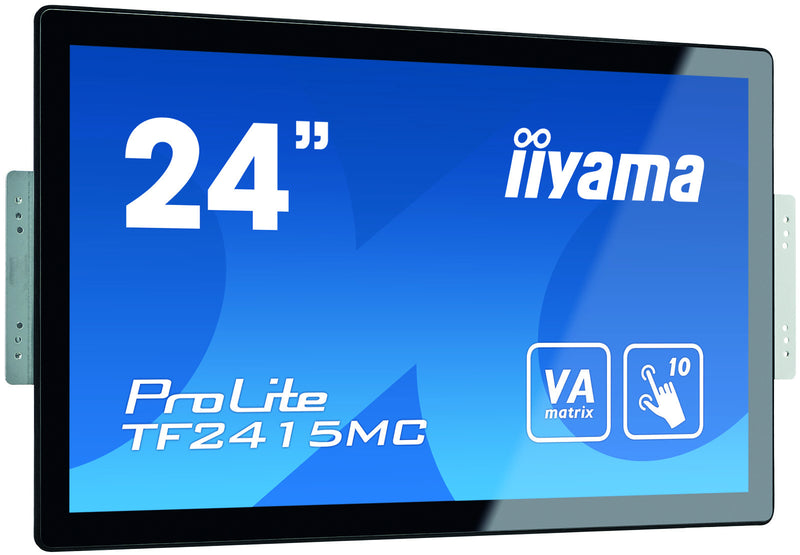

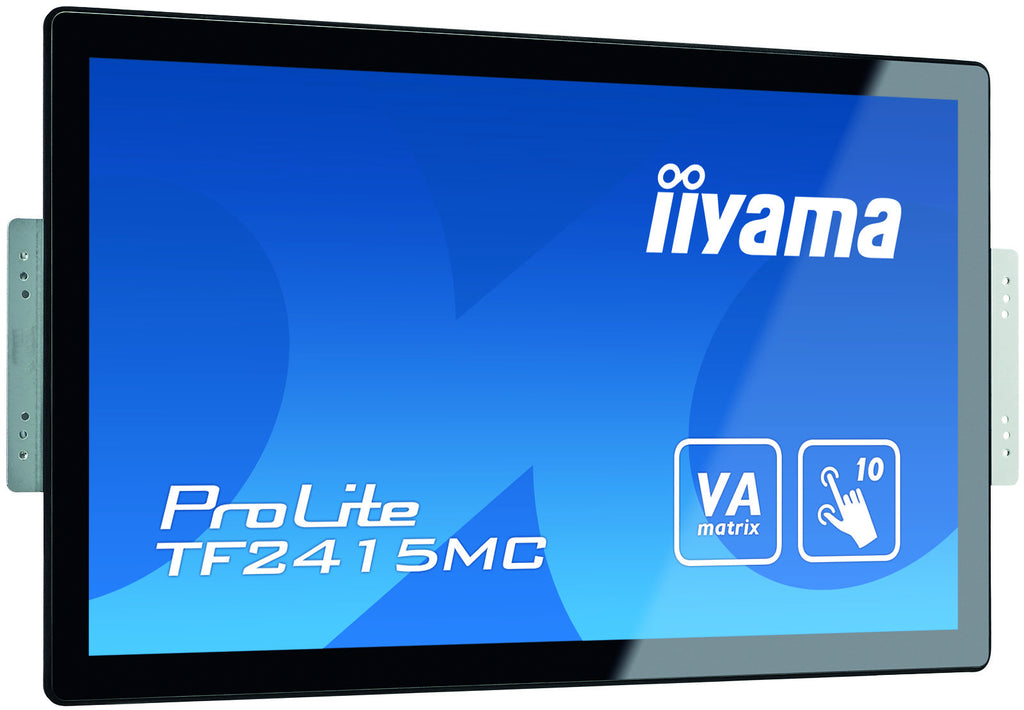

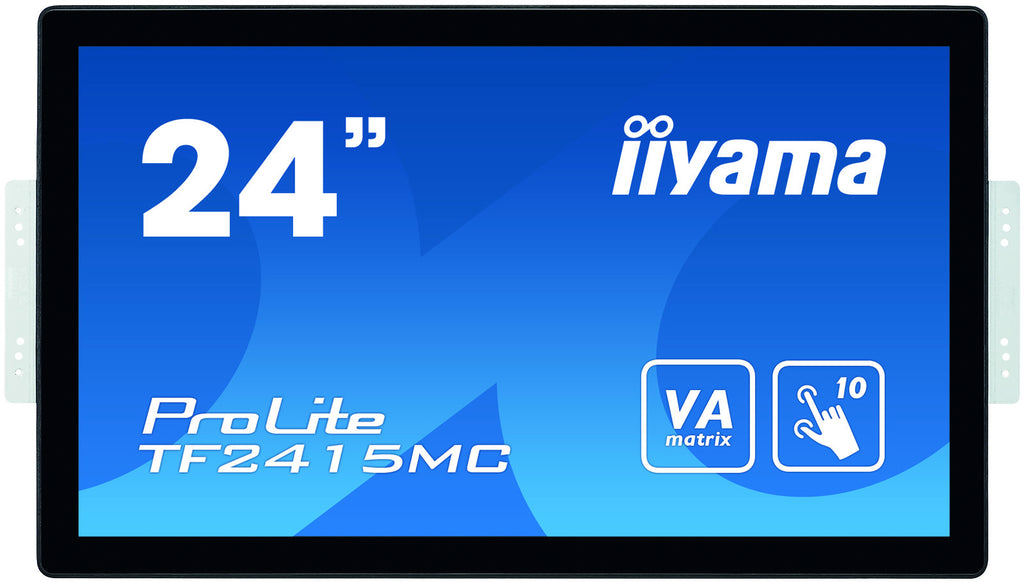

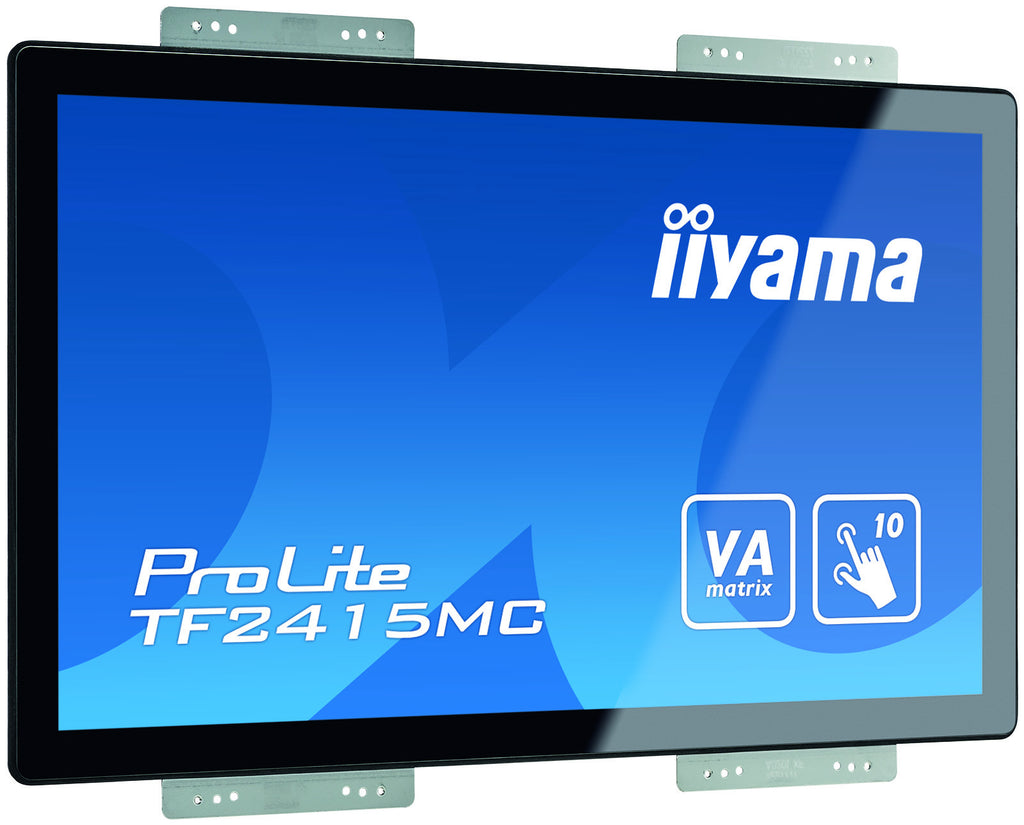

The ProLite TF2415MC-B2 in PCAP technology features an edge-to-edge glass panel. Thanks to the glass layer and a durable bezel, this monitor guarantees high durability and scratch resistance. It is a perfect choice for kiosks and heavy-duty applications. Featuring a foam finish, it easily integrates into a kiosk frame. This monitor is IP65 rated, which means it is resistant to dust and moisture. The portrait/landscape/face-up orientation will give you all the mounting options for any installation. To facilitate its integration, the TF2415MC-B2 comes with brackets, making it an ideal solution for integrators, industrial environments, control rooms and interactive multimedia solutions.
TOUCH TECHNOLOGY - PROJECTED CAPACITIVE
This technology uses a sensor with micro-fine voltage wires integrated into the glass covering the monitor. The touch is detected thanks to the electrical characteristics of the sensor and therefore varies when the user's finger is moved on the glass. Thanks to this protective glass, this technology has a long service life, and the touch function is not impaired even in the event of scratches, for example. This allows for an image with perfect performance and quality and also allows use with a finger, directly, (also latex gloves) and a magnetic pointer.
PROTECTIVE FOAM
A finish with protective foam (8mm) surrounding the perimeter of the monitor guarantees easy integration and optimal optimization against dust.

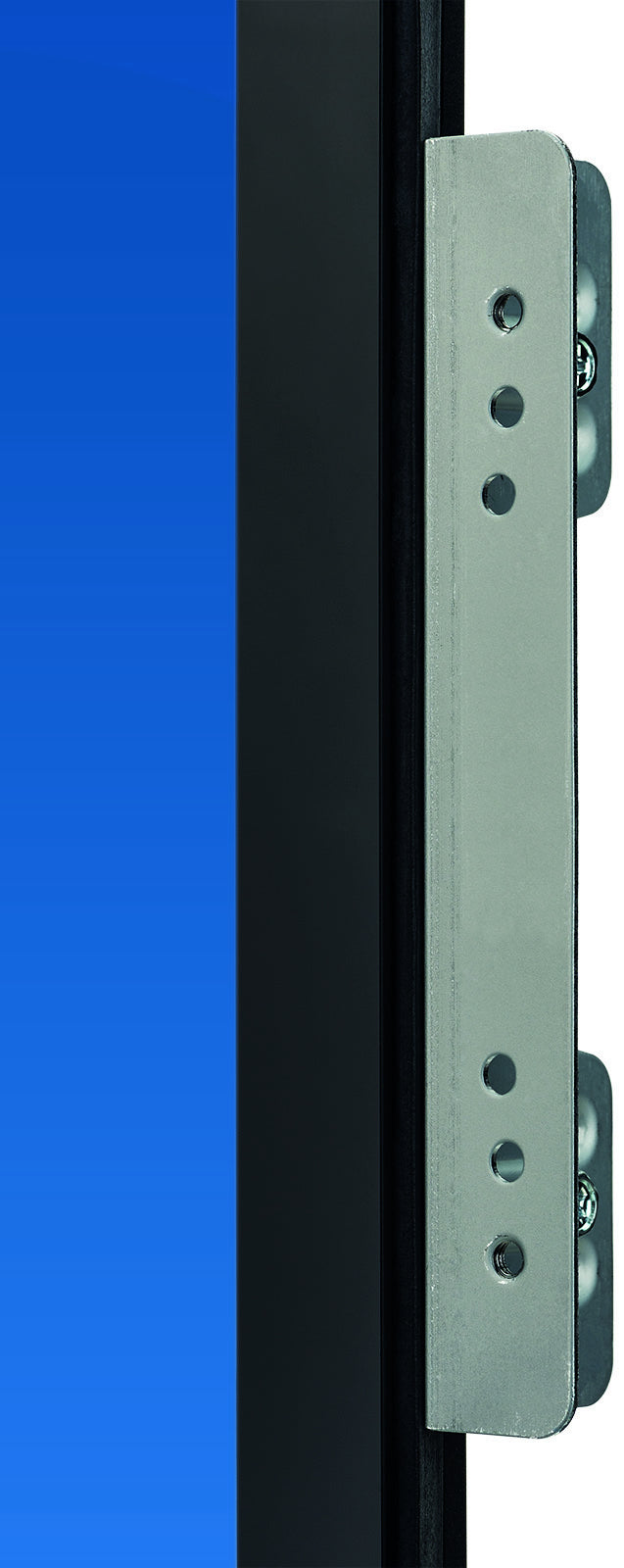

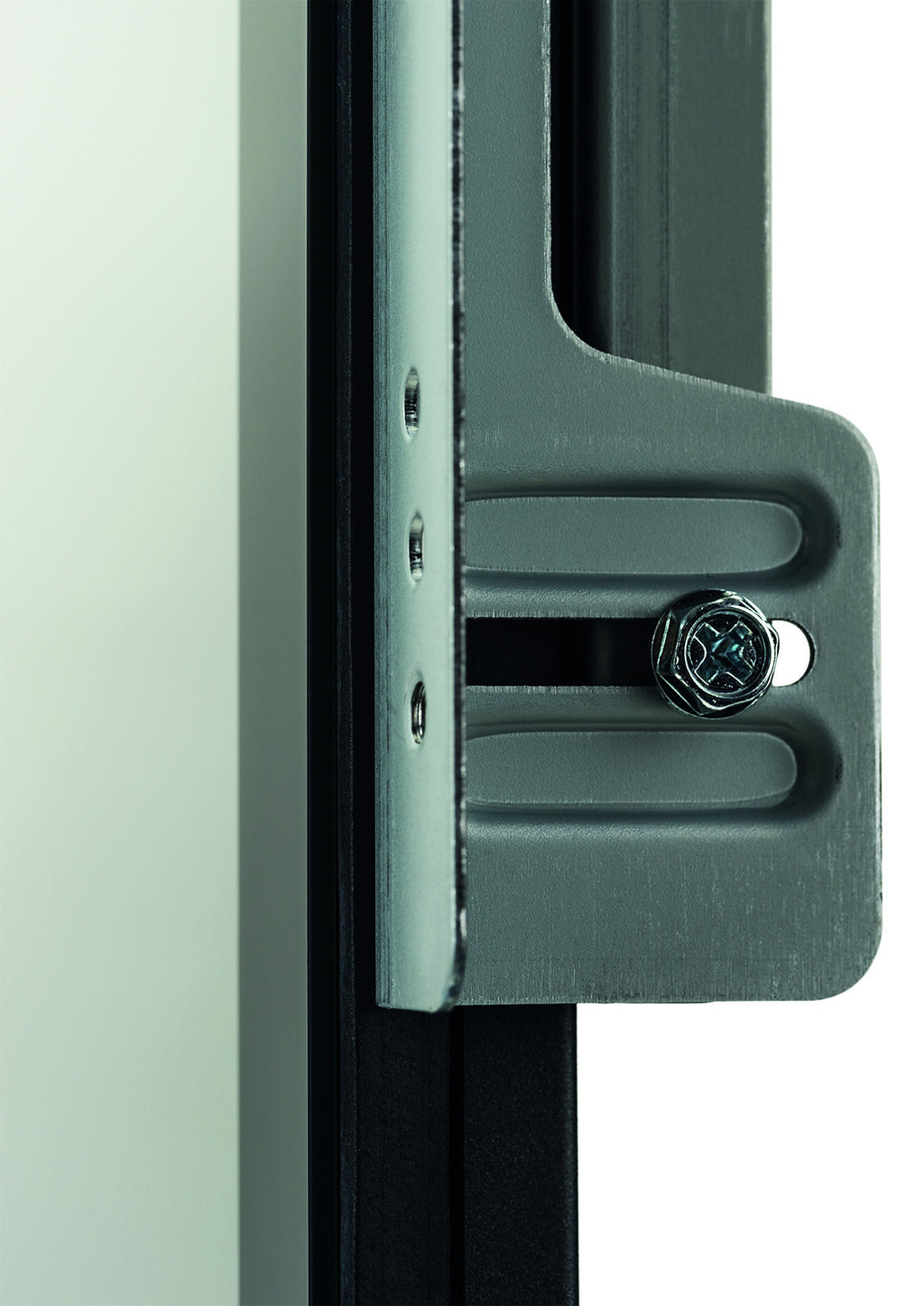

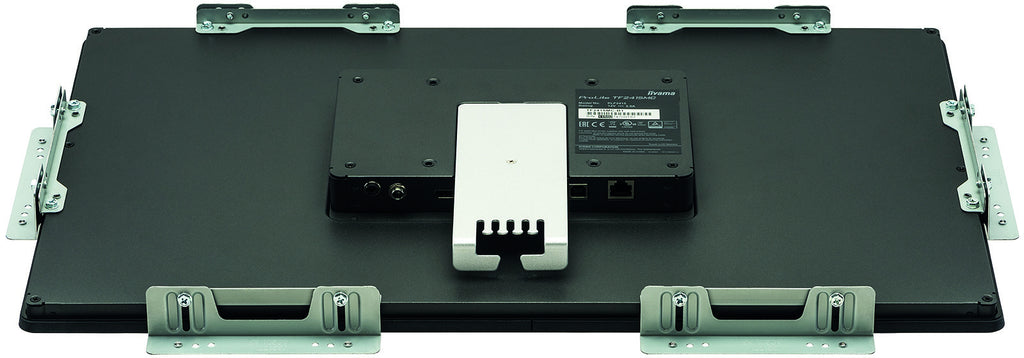

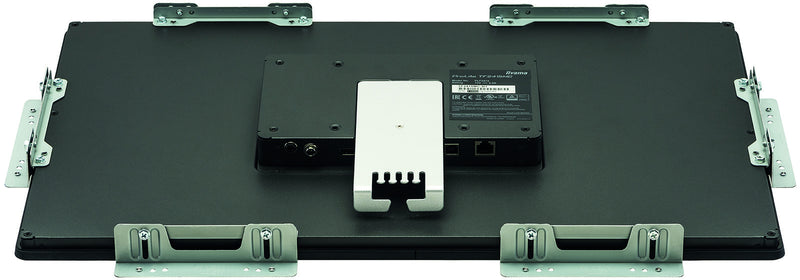

This borderless monitor is equipped with external brackets. It guarantees easy installation and makes it an ideal solution for integrators and points of sale.
FALLING BALL TEST
In the ball drop test, a half-kilogram steel ball is used, which is dropped onto the touch screen from a height of 1.3 meters. If the surface of the touch screen remains undamaged, the monitor passes the impact resistance test, demonstrating high durability.
TOUCH THROUGH GLASS
This touchscreen works directly through glass and can transform glass surfaces into an interactive touchscreen. Use it on shop windows, in real estate agencies, for in-store point of sale or restaurants.
ANTI-FINGERPRINT COATING
This special Nano coating ensures a softer touch and less slip resistance. It makes the screen less static and less susceptible to fingerprints, dirt, dust and it improves the clarity of the content displayed on the screen.
TOUCH TECHNOLOGY - PROJECTED CAPACITIVE
This technology uses a sensor with micro-fine voltage wires integrated into the glass covering the monitor. The touch is detected thanks to the electrical characteristics of the sensor and therefore varies when the user's finger is moved on the glass. Thanks to this protective glass, this technology has a long service life, and the touch function is not impaired even in the event of scratches, for example. This allows for an image with perfect performance and quality and also allows use with a finger, directly, (also latex gloves) and a magnetic pointer.
PROTECTIVE FOAM
A finish with protective foam (8mm) surrounding the perimeter of the monitor guarantees easy integration and optimal optimization against dust.
This borderless monitor is equipped with external brackets. It guarantees easy installation and makes it an ideal solution for integrators and points of sale.
FALLING BALL TEST
In the ball drop test, a half-kilogram steel ball is used, which is dropped onto the touch screen from a height of 1.3 meters. If the surface of the touch screen remains undamaged, the monitor passes the impact resistance test, demonstrating high durability.
TOUCH THROUGH GLASS
This touchscreen works directly through glass and can transform glass surfaces into an interactive touchscreen. Use it on shop windows, in real estate agencies, for in-store point of sale or restaurants.
ANTI-FINGERPRINT COATING
This special Nano coating ensures a softer touch and less slip resistance. It makes the screen less static and less susceptible to fingerprints, dirt, dust and it improves the clarity of the content displayed on the screen.
| Screen | |
| Screen size | 60.5 cm (23.8") |
| Screen resolution | 1920 x 1080 pixels |
| Image format | 16:9 |
| Display technology | GO |
| Touch screen | Yes |
| HD type | Full HD |
| Screen shape | Flat |
| Contrast ratio | 3000:1 |
| Number of colors displayed | 16.78 million colors |
| Touch screen type | Multi-user |
| Touch screen technology | Projected capacitive technology |
| Touch technology | Multiple pressures |
| Number of simultaneous contact points | 10 |
| Response time | 16 ms |
| Image format | 16:9 |
| Horizontal viewing angle | 178° |
| Vertical viewing angle | 178° |
| No pixel | 0.2745 x 0.2745 mm |
| Horizontal scanning range | 31.4 - 82 kHz |
| Vertical scan frequency | 56 - 75 Hz |
| Screen diagonal (cm) | 60.5 cm |
| Screen Brightness | 315 cd/m² |
| Separate H/V Sync. | Yes |
| representation / realization | |
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
| OmniTapps Multitouch Compatibility | No |
| multimedia | |
| Built-in camera | No |
| Built-in microphone | No |
| Design | |
| Product color | Black |
| Code (IP) International Protection | IP65 |
| Certification | CB, CE, TÜV-Bauart, CU, cULus |
| Connectivity | |
| HDMI | Yes |
| USB touch port | Yes |
| Number of VGA (D-Sub) ports | 1 |
| Quantity of HDMI ports | 1 |
| DisplayPorts interface quantity | 1 |
| Audio output | 1 |
| HDCP | Yes |
| Ergonomics | |
| VESA mounting | Yes |
| VESA standard | 100 x 100 mm |
| Wall mounting | Yes |
| Multilingual on-screen display | German, English, Spanish, French, Italian, Japanese |
| Number of OSD languages | 7 |
| Plug and Play | Yes |
| Power | |
| Energy efficiency class (SDR) | F |
| Power consumption (SDR) per 1000 hours | 22 kWh |
| Typical power consumption | 25 W |
| Power consumption (standby mode) | 1.2 W |
| Power consumption (off) | 1.2 W |
| Power supply type | CC |
| Energy efficiency range | A to G |
| Environmental conditions | |
| Operating temperature | 0 - 40 °C |
| Non-operating temperature | -20 - 60 °C |
| Operating relative humidity (HH) | 20 - 80% |
| Relative humidity level (storage) | 10 - 90% |
| Package Contents | |
| Cables included | Power, DisplayPort, HDMI, USB |
| Quick Start Guide | Yes |
| Weight and dimensions | |
| Width (without support) | 575 mm |
| Depth (without support) | 42.5 mm |
| Height (without support) | 347 mm |
| Weight (without support) | 5.8 kg |
| Logistics data | |
| Harmonized System Code | 85285210 |
| Other features | |
| Power adapter supplied | Yes |
| HxV viewable region screen | 527.04 x 296.46 mm |
| Installation supported | horizontal/vertical |
| Full HD | Yes |
| Protective glass | Yes |
