Description

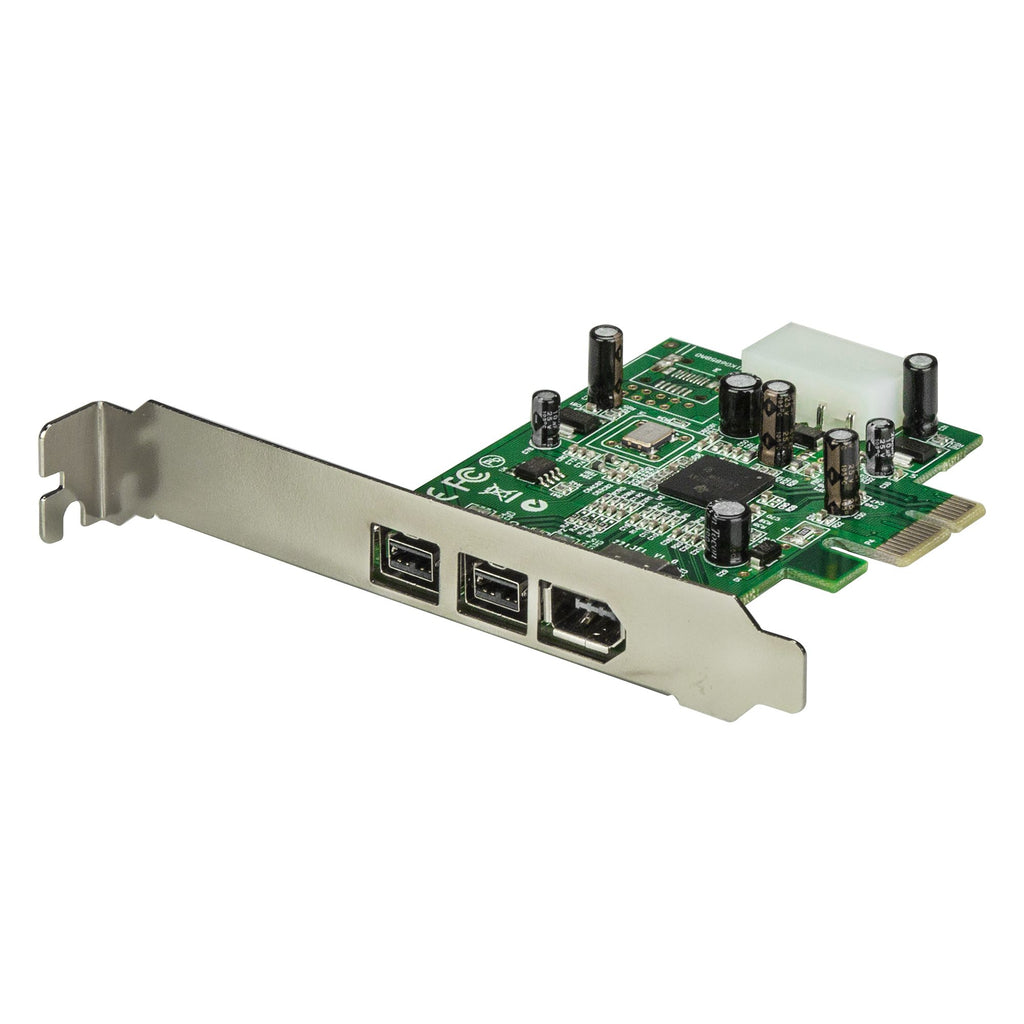

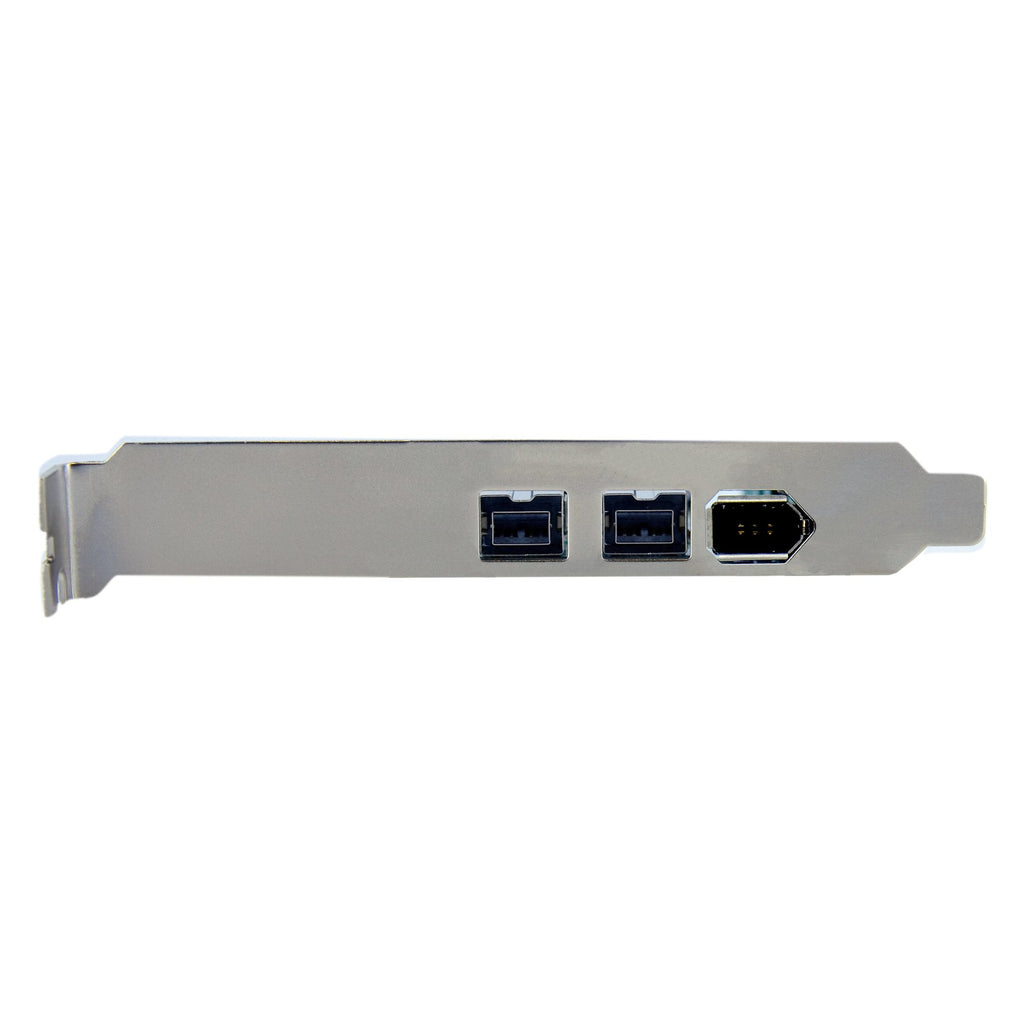

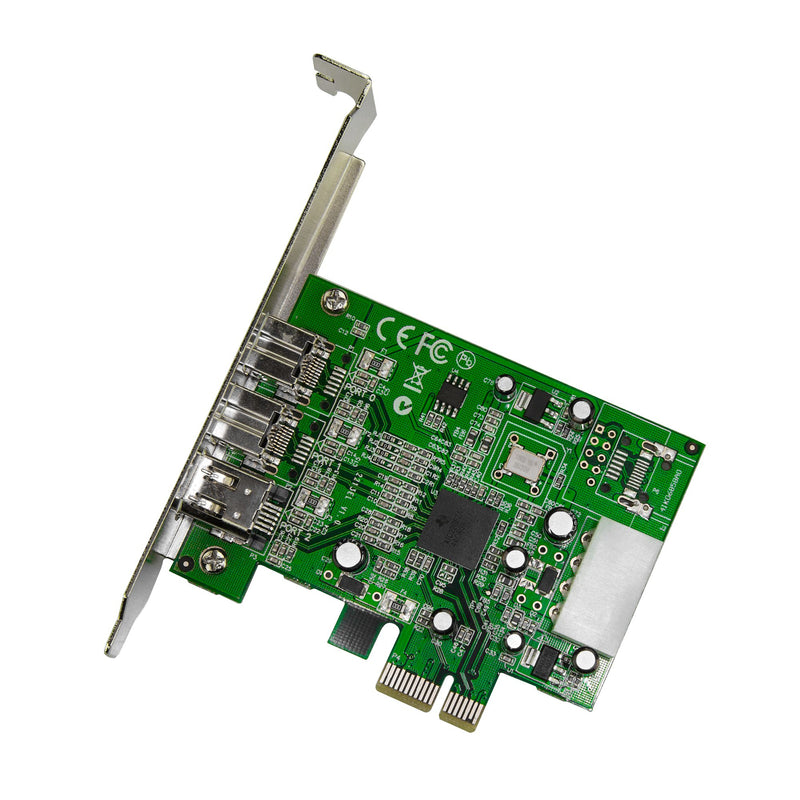

Add 2 native FireWire 800 ports to your computer via a PCI Express expansion slot This 3-port PCI Express FireWire adapter card can be installed in a PCI Express slot to add two IEEE1394b ports (FireWire 800 - 9 pin) and one IEEE1394a port (FireWire 400 - 6 pin), allowing compatibility with many FireWire devices (e.g. DV camcorders, external hard drives, digital cameras, etc.). The 2b, 1a card includes a native (single chip) PCI Express chipset, providing improved speed, reliability, and cost-effective performance compared to expansion cards that use a "bridge" chip. ”.The StarTech.com Advantage
| Connectivity | |
| Host interface | PCIe |
| Output interface | Firewire 800/400 |
| Expansion card standard | PCIe 1.1 |
| Quantity of FireWire 400 ports | 1 |
| Quantity of FireWire 800 ports | 2 |
| Design | |
| Internal | Yes |
| Product color | Green |
| Mean time between failures | 149905 h |
| Features | |
| Component set | Texas Instruments - XIO2213B |
| Data transfer rate (max) | 0.8 Gbps |
| Minimum system requirements | |
| Windows operating system support | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11 , Windows 11 x64, Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 98SE, Windows ME, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64 , Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Mac operating system support | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS |
| Linux operating system support | Yes |
| Server OS support | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2016, Windows Server 2019 |
| Technical details | |
| Sustainability Compliance | Yes |
| Sustainability certificates | CE, RoHS |
| Weight and dimensions | |
| Width | 18mm |
| Depth | 85mm |
| Height | 120mm |
| Weight | 48g |
| Packaging information | |

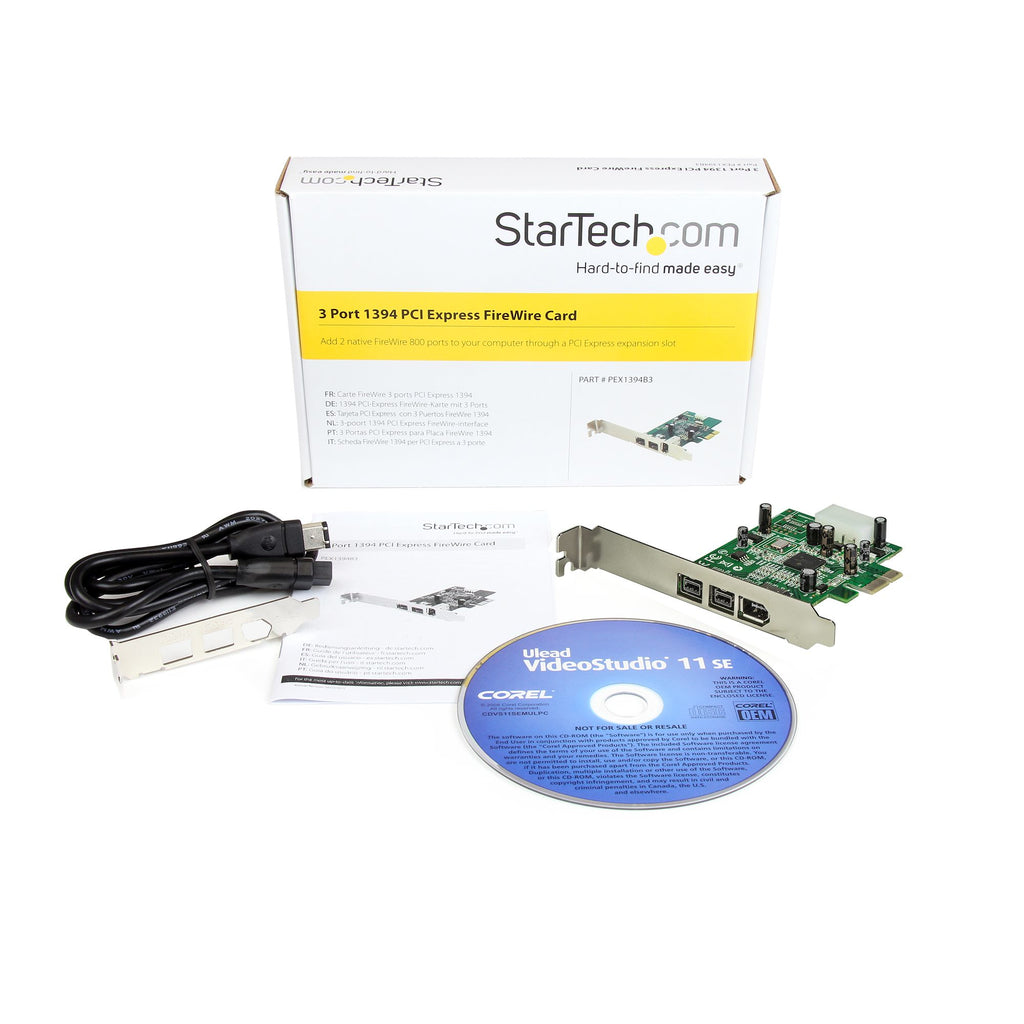

| Cables included | Firewire |
| elevation hooks included | Yes |
| Drivers included | Yes |
| User Manual | Yes |
| Package width | 148mm |
| Package depth | 213mm |
| Package height | 41mm |
| Package weight | 212g |
| Logistics data | |
| Harmonized System Code | 84733020 |
| Produced by main (external) locker | 50 piece(s) |
| Width of main locker (external) | 355mm |
| Length of main locker (external) | 681mm |
| Height of main (external) locker | 317mm |
