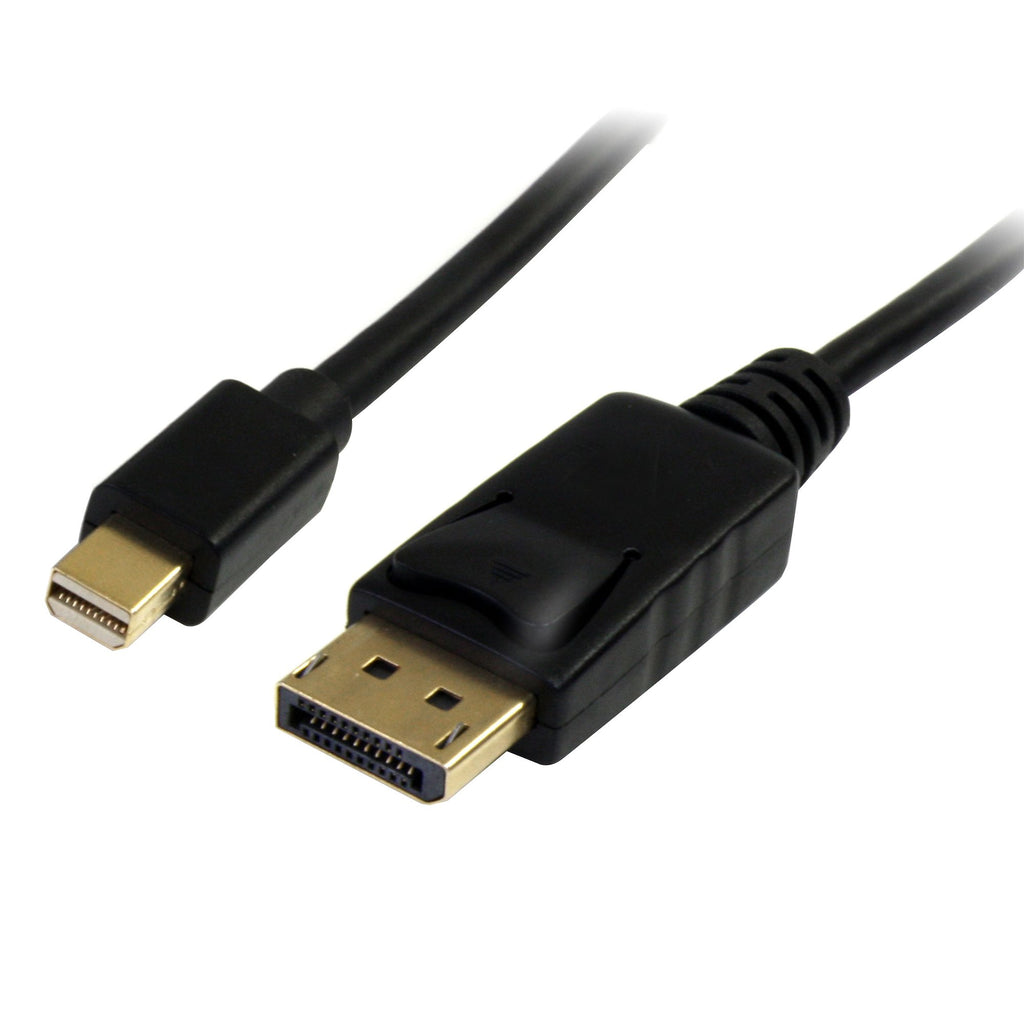

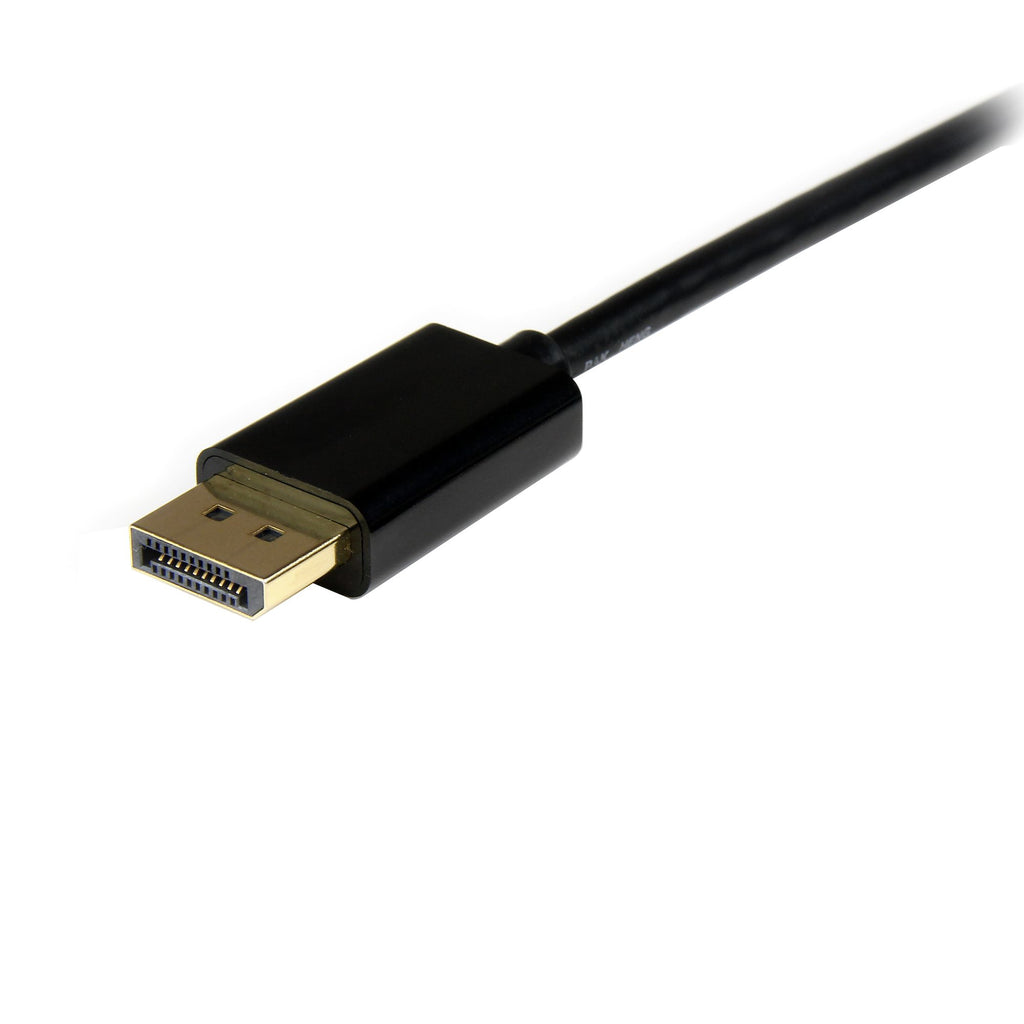

Create a high-resolution 4k x 2k connection with HBR2 support between your Mini DisplayPort™ enabled laptop and a standard DisplayPort displayThe MDP2DPMM1M 1-meter Mini DisplayPort™ to DisplayPort adapter cable features a male Mini DP connector on one end and a male DP connector on the other; allowing you to connect any Mini DisplayPort enabled laptop (including Mac© product lines) to an HDTV, monitor or projector with a standard DisplayPort connection.The mDP to DP cable supports high resolutions up to 4k x 2k (3840 x 2160) at 60 Hz with a maximum HBR2 bandwidth of 21.6 Gbps. This cable also supports Multi-Stream (MST) for daisy-chained multiple displays and offers optional audio support.The MDP2DPMM1M is backed by StarTech.com's Lifetime Warranty for guaranteed reliability and to ensure digitally protected content is displayed correctly with HDCP and DPCP capabilities.Note: Newer laptops and desktops (e.g. Apple©) only have Thunderbolt™ ports. Our Mini DisplayPort to DisplayPort cables can connect to Thunderbolt ports, allowing you to connect your DisplayPort-enabled displays.The StarTech.com Advantage
| Features |
| Cable length |
1 m |
| Connector 1 |
Mini DisplayPort |
| Connector 2 |
DisplayPort |
| Connector type 1 |
Male |
| Connector type 2 |
Male |
| Maximum resolution |
3840 x 2400 pixels |
| Product color |
Black |
| Connector form factor 1 |
Right |
| Connector form factor 2 |
Right |
| Plating connector contacts |
Nickel |
| DisplayPort version |
1.2 |
| Supported Graphics Resolutions |
3840 x 2400, 2560 x 1600 (WQXGA) |
| Maximum discount rate |
120 Hz |
| Cable rated intensity |
CMG (CM) |
| Cable shielding |
Mylar aluminum plate |
| Coat material |
Polyvinyl chloride (PVC) |
| AWG Wire Size |
32 |
| Bandwidth |
21600 MB/s |
| Plug and Play |
Yes |
| Multi-Stream Transport (MST) |
Yes |
| Number of drivers |
19 |
| Environmental conditions
|
| Operating temperature |
0 - 35 °C |
| Non-operating temperature |
-10 - 80 °C |
| Operating relative humidity (HH) |
5 - 80% |
| Sustainability
|
| Sustainability certificates |
CE, RoHS |
| Packaging information
|
| Weight |
44 g |
| Quantity |
1 piece(s) |
| Package width |
200 mm |
| Package depth |
220 mm |
| Package height |
10 mm |
| Package weight |
52 g |
| Logistics data
|
| Harmonized System Code |
84733080 |
| Main locker width (external) |
320 mm |
| Main locker length (external) |
500 mm |
| Height of main locker (external) |
210 mm |
| Produced by main (external) locker |
100 piece(s) |
