Description
Add front or rear panel USB 3.0 ports to your computer case using motherboard-style USB 3.0 connectors

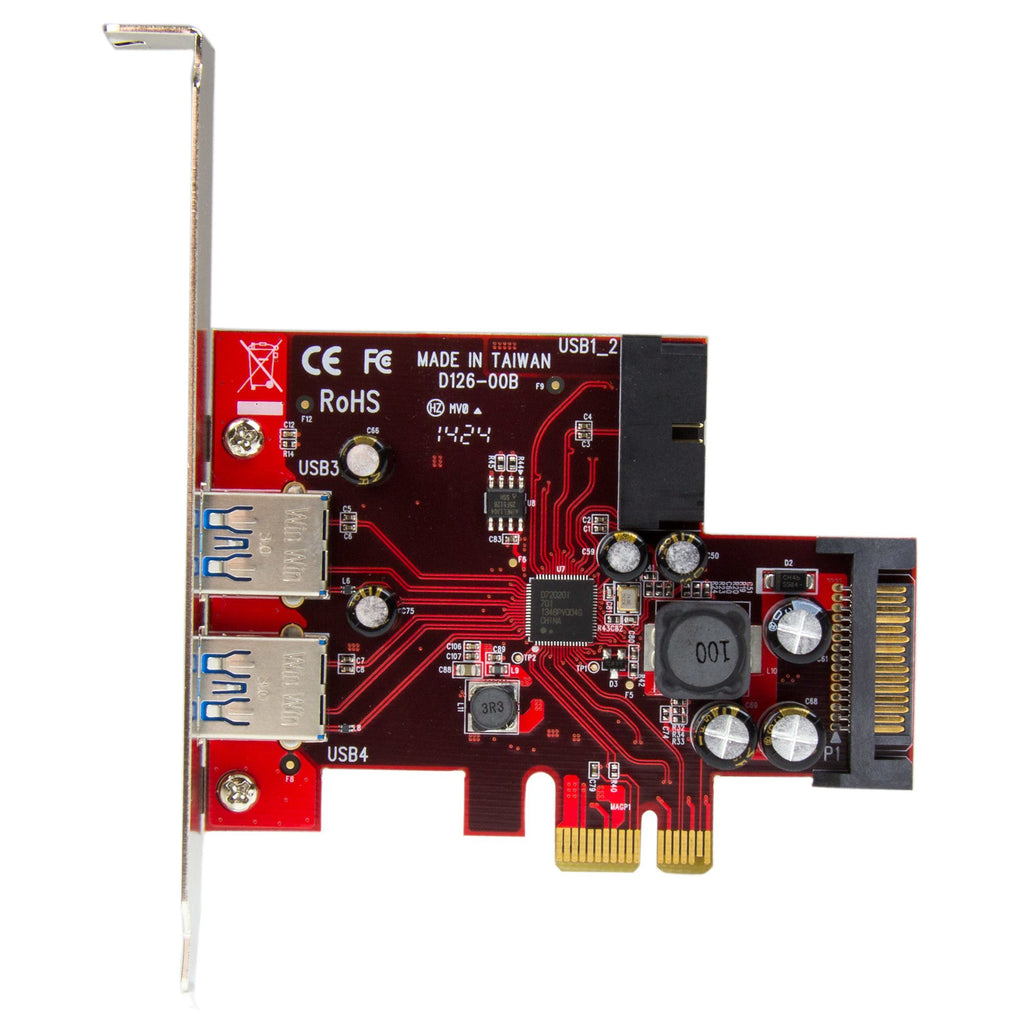

This PCI Express USB 3.0 card is a cost-effective upgrade to add four USB 3.0 ports to your computer in one PCI-E slot. With two external and two internal USB 3.0 ports, your desktop or server will support a variety of USB 3.0 devices.
Soft and convenient wearing design
Additional motherboard-style USB 3.0 connectors allow you to add other internal USB 3.0 devices to your PC. When your external connectors are taken, you can still plug in front panel hubs or card readers using this versatile, less expensive alternative to motherboards and computer upgrades.

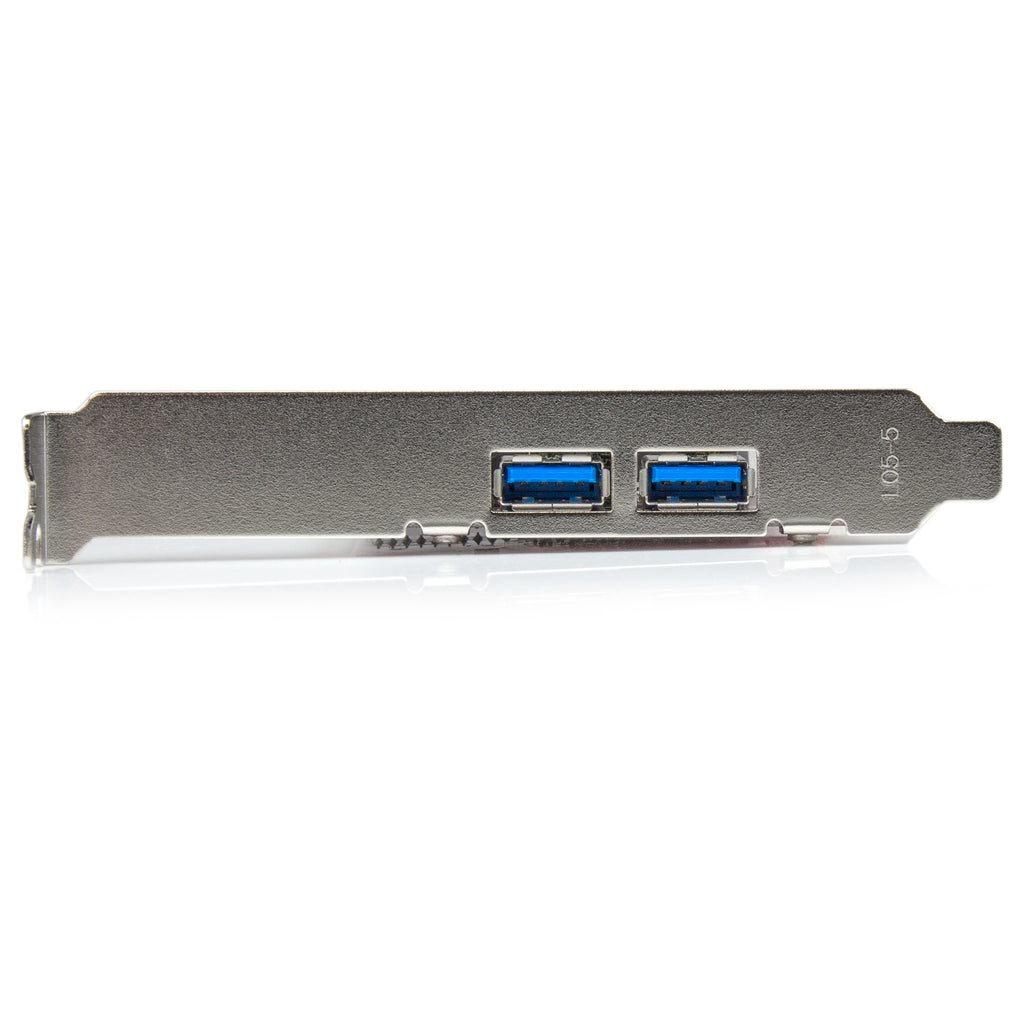

For added convenience, the card includes two external USB 3.0 ports so you can connect more devices, like external hard drives or printers.
Simple installation and support for older devices
Easy to install, the USB 3.0 card does not require any other drivers or software in native Windows 8.1/8 operating systems. Plus, its dual-format design fits standard or small-format cases: if needed, it can still fit into your compact system.
Now plugging in old peripherals is child's play. You will no longer have to buy new ones: the adapter card is backward compatible with your USB 2.0 and 1.x hardware.
USB 3.0 performance enhanced by UASP
This high-performance SuperSpeed USB 3.0 card supports transfer speeds of up to 5 Gbps as well as UASP, which can increase read speed by 70% and write speed by 40% compared to 'Traditional USB 3.0 when paired with
Ruggedly built, the PEXUSB3S2EI model provides reliable USB 3.0 connections. Plus, it's backed by StarTech.com's 2-year warranty and free lifetime technical support.
Note: USB Attached SCSI Protocol (UASP) is supported by Windows 8, 8.1, Server 2012 and Linux kernel 2.6.37 and later. Testing was performed with an Intel Ivy Bridge system, additional StarTech.com USB 3.0 cards, a StarTech.com enclosure with UASP, and a SATA III SSD.
The StarTech.com Advantage
- Flexibility to plug in external and internal USB 3.0 devices, with UASP support
- Fast and simple setup with native Windows 8 support, suitable for standard or small footprint systems
- Backwards compatibility lets you save money and plug in your existing USB 2.0 and 1.x devices
This PCI Express USB 3.0 card is a cost-effective upgrade to add four USB 3.0 ports to your computer in one PCI-E slot. With two external and two internal USB 3.0 ports, your desktop or server will support a variety of USB 3.0 devices.
Soft and convenient wearing design
Additional motherboard-style USB 3.0 connectors allow you to add other internal USB 3.0 devices to your PC. When your external connectors are taken, you can still plug in front panel hubs or card readers using this versatile, less expensive alternative to motherboards and computer upgrades.
For added convenience, the card includes two external USB 3.0 ports so you can connect more devices, like external hard drives or printers.
Simple installation and support for older devices
Easy to install, the USB 3.0 card does not require any other drivers or software in native Windows 8.1/8 operating systems. Plus, its dual-format design fits standard or small-format cases: if needed, it can still fit into your compact system.
Now plugging in old peripherals is child's play. You will no longer have to buy new ones: the adapter card is backward compatible with your USB 2.0 and 1.x hardware.
USB 3.0 performance enhanced by UASP
This high-performance SuperSpeed USB 3.0 card supports transfer speeds of up to 5 Gbps as well as UASP, which can increase read speed by 70% and write speed by 40% compared to 'Traditional USB 3.0 when paired with
Ruggedly built, the PEXUSB3S2EI model provides reliable USB 3.0 connections. Plus, it's backed by StarTech.com's 2-year warranty and free lifetime technical support.
Note: USB Attached SCSI Protocol (UASP) is supported by Windows 8, 8.1, Server 2012 and Linux kernel 2.6.37 and later. Testing was performed with an Intel Ivy Bridge system, additional StarTech.com USB 3.0 cards, a StarTech.com enclosure with UASP, and a SATA III SSD.
The StarTech.com Advantage
- Flexibility to plug in external and internal USB 3.0 devices, with UASP support
- Fast and simple setup with native Windows 8 support, suitable for standard or small footprint systems
- Backwards compatibility lets you save money and plug in your existing USB 2.0 and 1.x devices
| Connectivity | |
| Host interface | PCIe |
| Output interface | SATA, USB 3.2 Gen 1 (3.1 Gen 1) |
| Expansion card form factor | Overall Height / Low Profile |
| Expansion card standard | PCI 2.0 |
| Quantity of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports | 2 |
| Quantity of internal SATA ports | 1 |
| Design | |
| Internal | Yes |
| Product color | Metallic, Red |
| Maximum cable length | 3m |
| Mean time between failures | 1920042 h |
| Features | |
| Component set | Renesas / NEC - µPD720201 |
| Data transfer rate (max) | 5 Gbps |
| UASP support | Yes |
| Environmental conditions | |
| Operating temperature | 5 - 50°C |
| Non-operating temperature | -25 - 70°C |
| Relative operating humidity (HH) | 20 - 80% |
| Minimum system requirements | |
| Windows operating system support | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Server OS support | Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Technical details | |
| Sustainability certificates | CE, RoHS |
| Weight and dimensions | |
| Width | 18mm |
| Depth | 92mm |
| Height | 120mm |
| Weight | 53g |
| Packaging information | |
| elevation hooks included | Yes |
| Drivers included | Yes |
| User Manual | Yes |
| Package width | 174mm |
| Package depth | 143mm |
| Package height | 33mm |
| Package weight | 143g |
| Logistics data | |
| Harmonized System Code | 84733020 |
| Produced by main (external) locker | 60 piece(s) |
| Width of main locker (external) | 383mm |
| Length of main locker (external) | 495mm |
| Height of main (external) locker | 316mm |
| Other features | |
| Maximum operating distance | 3m |
