Description
Add 4 DIN rail mountable RS232 serial ports to any system via USB

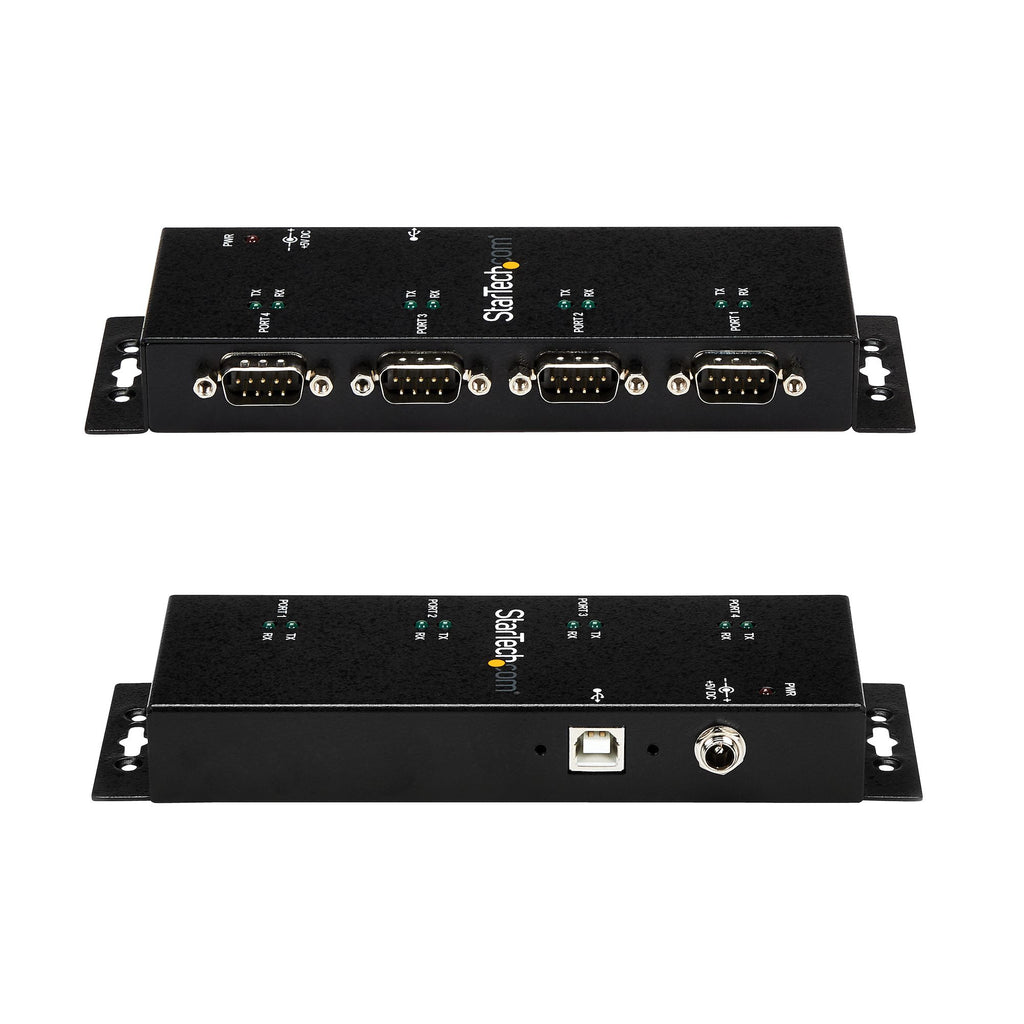

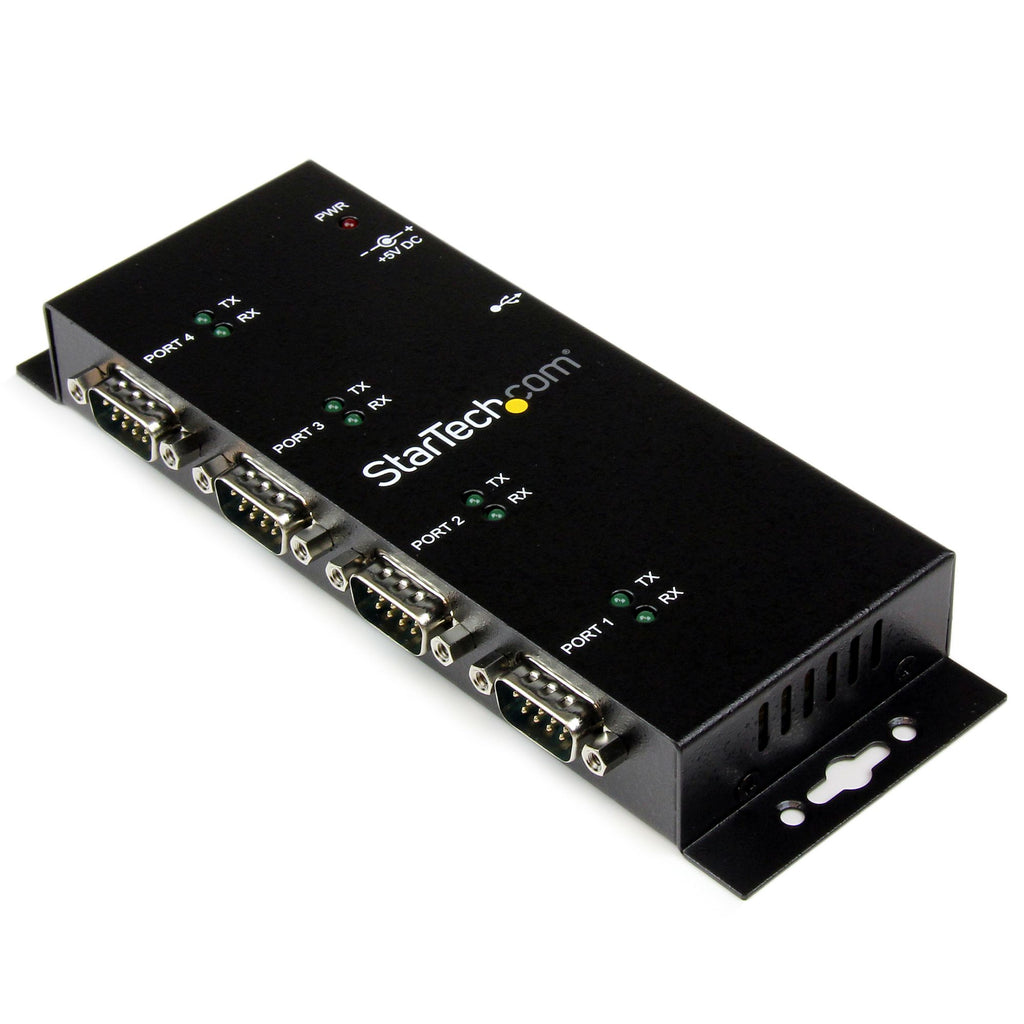

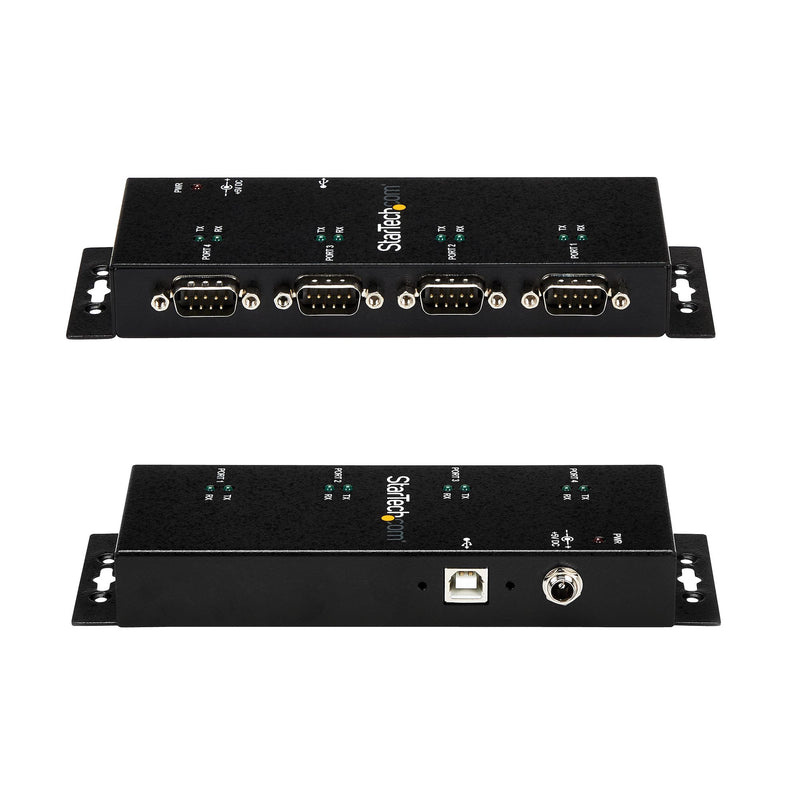

The ICUSB2324I Industrial USB to Serial 4 Port Adapter Hub with DIN Rail Clips converts one USB port into four RS232 serial ports, allowing you to connect, monitor and control your serial devices.

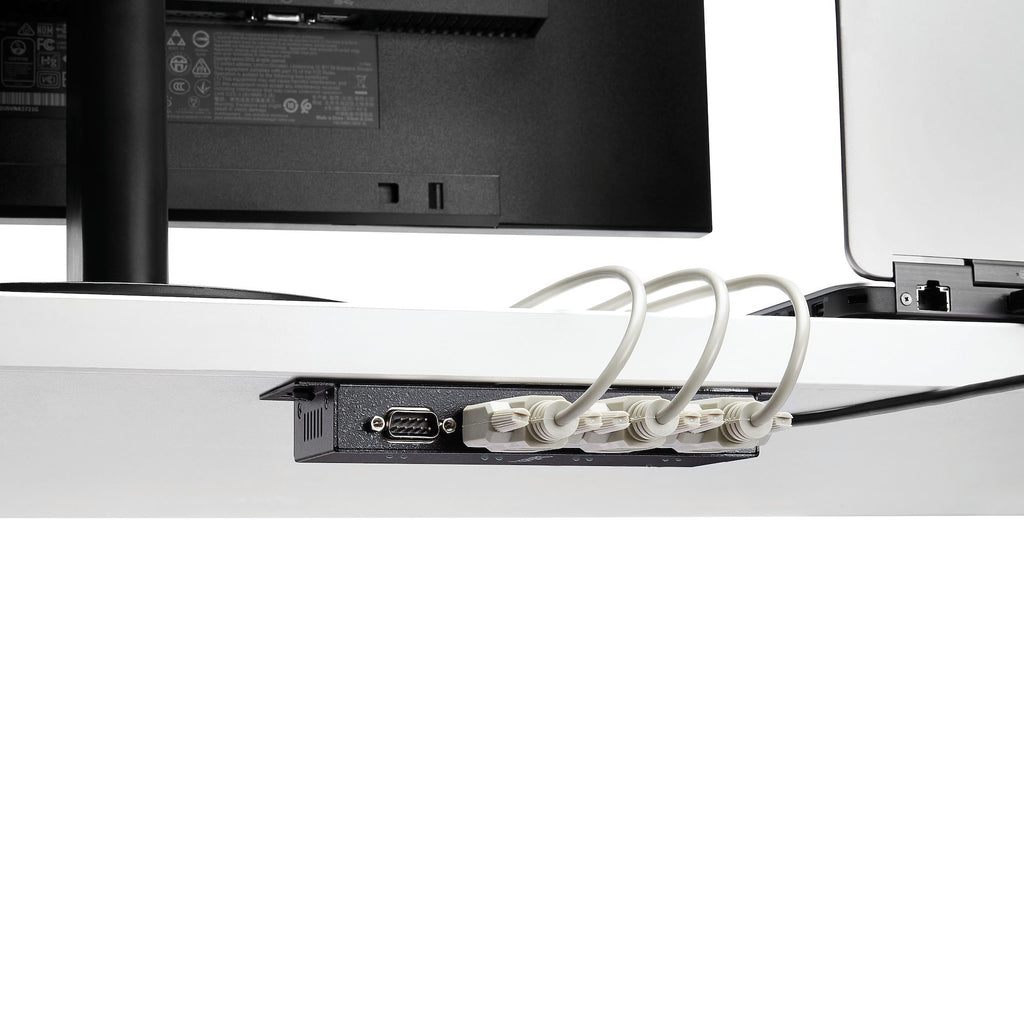

Featuring solid metal construction with heavy-duty wall-mount brackets and hat-style DIN rail clips (included), this USB to serial hub provides versatile mounting options and a rugged solution for both extreme and simple industrial environments. office facilities.
This USB powered adapter also retains the values assigned to the serial COM port and thus allows these values to be automatically reassigned to the ports provided by the adapter.
Backed by StarTech.com's 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Integrated wall mounting brackets and hat-style DIN rail clips included for versatile mounting options
- Rugged all-metal housing for increased durability in extreme environments
- Easy plug-and-play installation with our USB-powered adapter - No power outlet required
The ICUSB2324I Industrial USB to Serial 4 Port Adapter Hub with DIN Rail Clips converts one USB port into four RS232 serial ports, allowing you to connect, monitor and control your serial devices.
Featuring solid metal construction with heavy-duty wall-mount brackets and hat-style DIN rail clips (included), this USB to serial hub provides versatile mounting options and a rugged solution for both extreme and simple industrial environments. office facilities.
This USB powered adapter also retains the values assigned to the serial COM port and thus allows these values to be automatically reassigned to the ports provided by the adapter.
Backed by StarTech.com's 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Integrated wall mounting brackets and hat-style DIN rail clips included for versatile mounting options
- Rugged all-metal housing for increased durability in extreme environments
- Easy plug-and-play installation with our USB-powered adapter - No power outlet required
| Connectivity | |
| Quantity of ports | 4 |
| Host interface | USB 2.0 Type-B |
| Hub interfaces | Series |
| RS-232 port | 4 |
| Features | |
| Product color | Black |
| Housing/Body Material | Steel |
| LEDs | Activity |
| Power | |
| Power Source Type | USB |
| Plug type | Type M |
| Minimum system requirements | |
| Windows operating system support | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 98SE, Windows CE, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Mac operating system support | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS , Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 13.0 Ventura |
| Linux operating system support | Yes |
| Server OS support | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Support for other operating systems | Windows XP Embedded |
| Weight and dimensions | |
| Width | 59mm |
| Depth | 1788mm |
| Height | 23mm |
| Weight | 300g |
| Packaging information | |
| Quantity | 1 piece(s) |
| Package width | 216mm |
| Package depth | 152mm |
| Package height | 50mm |
| Package weight | 518g |

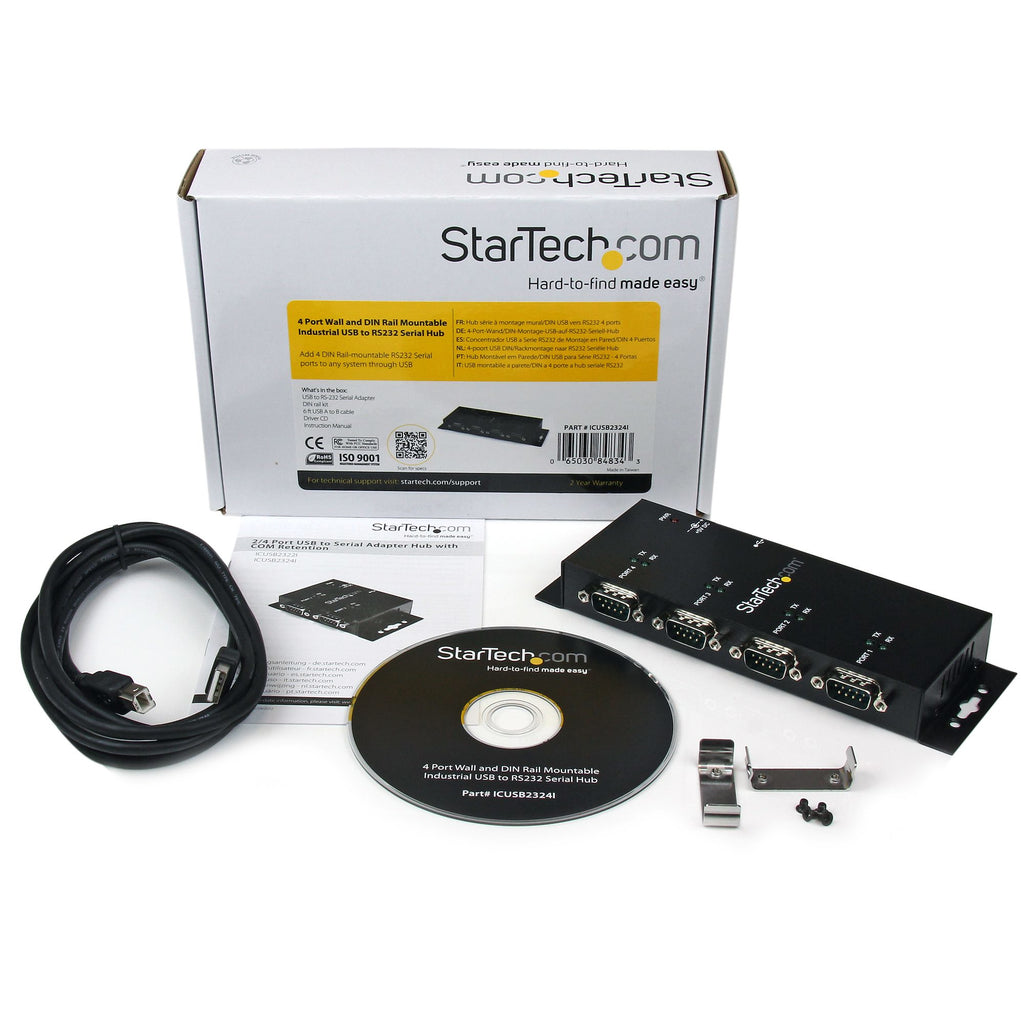

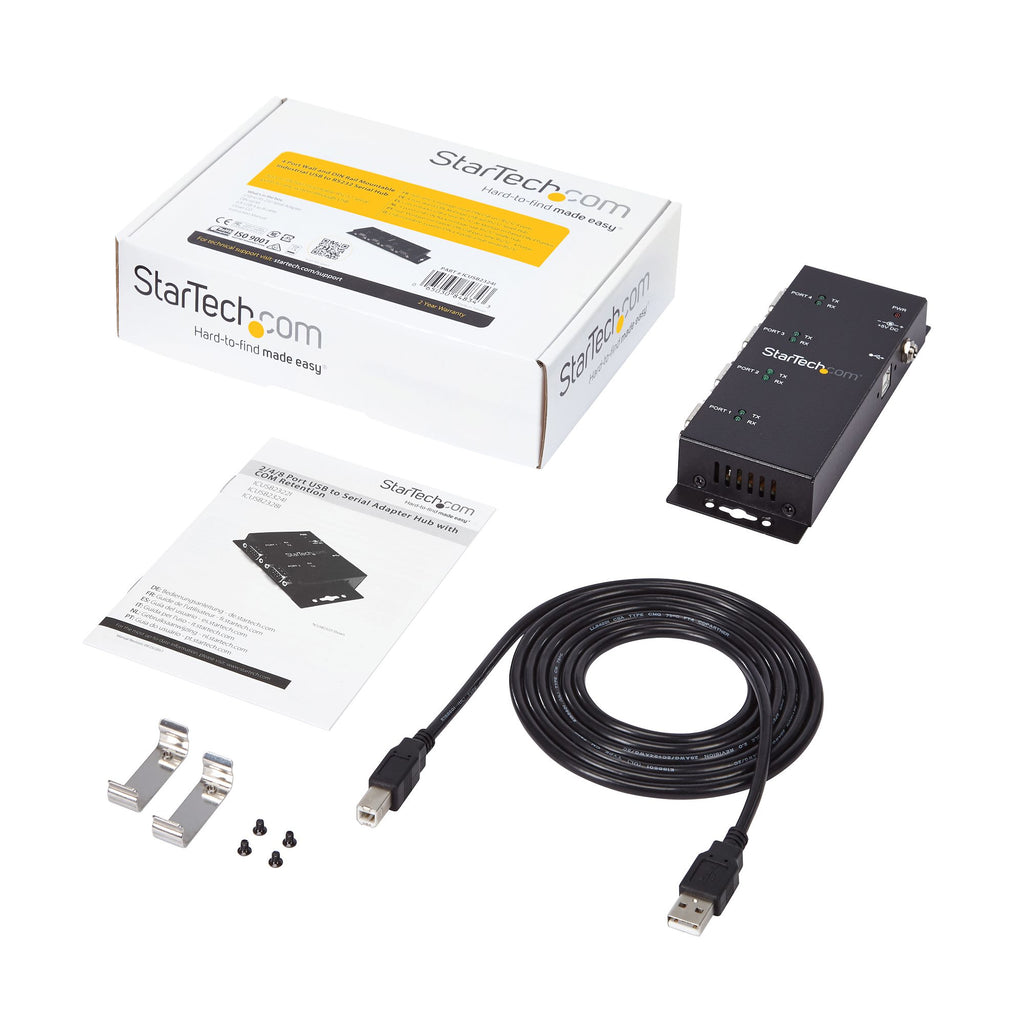

| Package Contents | |
| Cables included | USB |
| User Manual | Yes |
| DIN rail kit included | Yes |
| Drivers included | Yes |
| Environmental conditions | |
| Operating temperature | 0 - 55°C |
| Non-operating temperature | -20 - 85°C |
| Relative operating humidity (HH) | 5 - 95% |
| representation / production | |
| Data bits | 7, 8 |
| Stop bits | 1, 2 |
| Parity bit | Even, Mark, No, Odd, Space |
| FIFO (First in, first out) | 256 o |
| Transmission speed | 921.6 Kbps |
| Mean time between failures | 282713.5 hrs |
| Sustainability | |
| Sustainability Compliance | Yes |
| Sustainability certificates | CE, RoHS |
| Logistics data | |
| Width of main locker (external) | 432mm |
| Length of main locker (external) | 518mm |
| Height of main (external) locker | 264mm |
| Produced by main (external) locker | 25 piece(s) |
| Harmonized System Code | 84719000 |
| Other features | |
| Component set | FTDI - FT4232HL |
