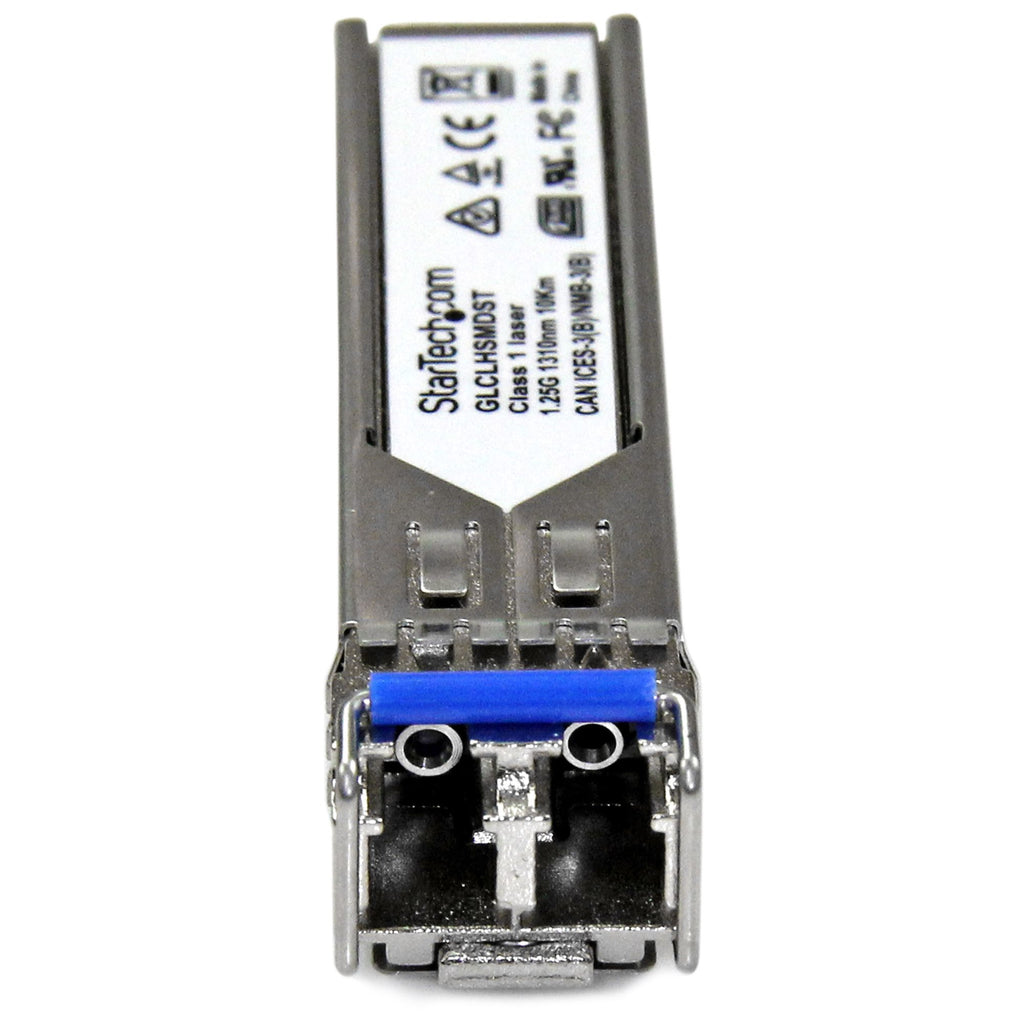

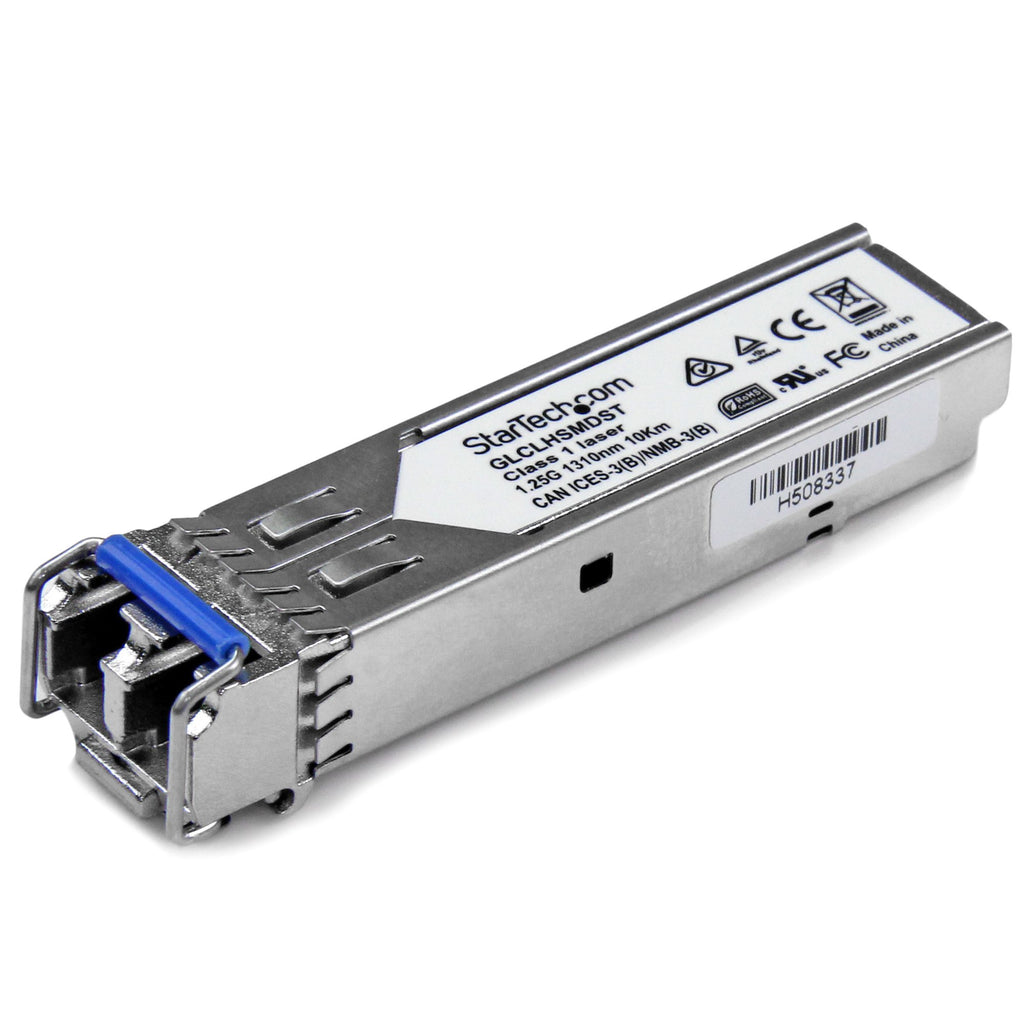

1000 Mbps (1 Gbps) | Single-mode and multi-mode fiber | LC | 10km | Lifetime WarrantyThe GLCLHSMDST model is a Cisco GLC-LH-SMD compatible fiber optic transceiver module that has been designed, programmed and tested to work with Cisco© brand switches and routers. It provides reliable 1GbE connectivity over fiber optic cable for networks conforming to 1000BASE-LX/LH specifications, with a maximum distance of 10 km.Technical specifications: • Wavelength: 1310 nm • Maximum transfer speed: 1.25 Gbit/s• Type: single-mode/multi-mode optical fiber• Connection type: LC connector• Maximum transfer distance: 10 km - SM / 1 km - MM• MTBF: 200,000 hours• Power consumption: less than 1 watt • Digital Diagnostics Control (DDM): YesThis fiber optic SFP module is hot-swappable, making upgrades and replacements easy with minimal network interruptions.SFP StarTech.comAll SFP modules and transceiver modules SFP+ StarTech.com is backed by a lifetime warranty and free lifetime technical support in multiple languages. StarTech.com offers a wide variety of direct-attach SFP modules and SFP cables that give you the ergonomics and reliability you need to ensure reliable network performance.The StarTech.com Advantage
| representation / production |
| SFP transceiver type |
Optical fiber |
| Maximum data transfer rate |
1250 Mbps |
| Interface Type |
SFP |
| Single-module fiber (FMN) compatible |
Yes |
| Multi-module fiber (FMM) compatible |
Yes |
| Optical fiber connector |
L.C. |
| SFP Transceiver Standard |
LH, LX |
| Maximum transfer distance |
10000m |
| Wave length |
1310nm |
| Network standards |
IEEE 802.3z |
| Double-sided system |
Complete |
| Auto MDI/MDI-X |
Yes |
| Digital Diagnostic Monitoring (DDM) |
Yes |
| Fiber Channel Ports |
1 |
| Features
|
| Product color |
Money |
| Housing/Body Material |
Aluminum |
| Hot Swap |
Yes |
| Mean time between failures |
200000 hours |
| Brand Compatibility |
Cisco |
| Compatible products |
GLC-LH-SMD |
| Power
|
| Typical power consumption |
1W |
| Environmental conditions
|
| Operating temperature |
0 - 70°C |
| Non-operating temperature |
-40 - 85°C |
| Relative operating humidity (HH) |
5 - 95% |
| Weight and dimensions
|
| Width |
12mm |
| Depth |
58mm |
| Height |
8mm |
| Weight |
18g |
| Packaging information
|
| Number of products included |
1 piece(s) |
| Package width |
92mm |
| Package depth |
118mm |
| Package height |
32mm |
| Package weight |
95g |
| Technical details
|
| Sustainability certificates |
CE, RoHS |
| Logistics data
|
| Width of main locker (external) |
259mm |
| Length of main locker (external) |
307mm |
| Harmonized System Code |
85369010 |
| Height of main (external) locker |
201mm |
| Produced by main (external) locker |
36 piece(s) |
