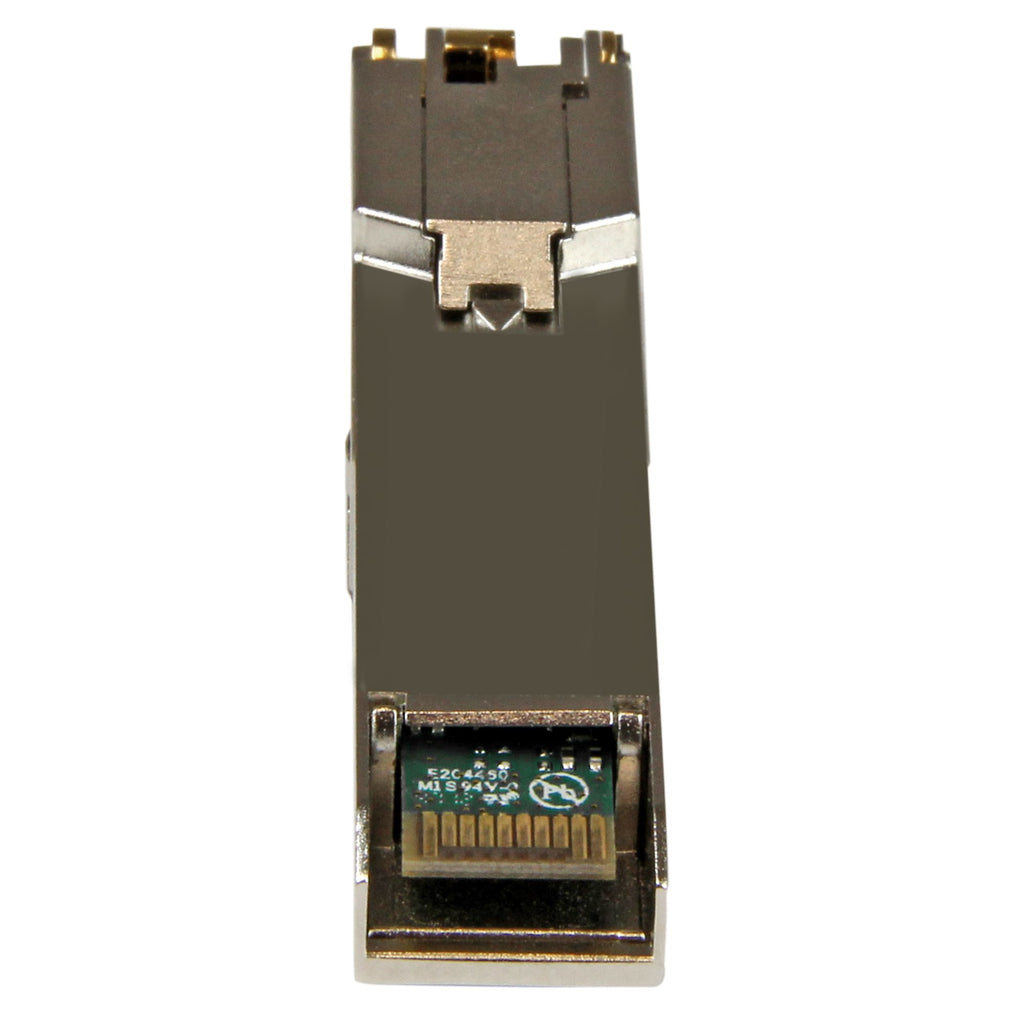

10/100/1000 Mbps | Copper | RJ45 | 100 m | Lifetime WarrantyThe MASFP1GBSXST is a Cisco Meraki MA-SFP-1GB-SX compatible copper transceiver module that has been designed, programmed, and tested to work with Cisco Meraki™ brand switches and routers. It provides reliable 1GbE (1000Mbps) connectivity over copper cable for 10BASE-T, 1000BASE-T, and 100BASE-TX compliant networks, with a maximum distance of 100m.Technical Specifications:• Maximum Data Rate: 1000Mbps• Type: Copper• Connection Type: RJ45 connector• Maximum Transfer Distance: 100m• MTBF: 4,655,371 hours• Power Consumption: Less than 1.3 watts• Digital Diagnostics Monitoring (DDM): NoThis copper SFP module is hot-swappable, making upgrades and replacements easy and minimizing network disruptions.StarTech.com SFPAll StarTech.com SFP modules and SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multi-language technical support. StarTech.com offers a wide variety of SFP modules and direct attach SFP cables, giving you the convenience and reliability you need to ensure dependable network performance.The StarTech.com Advantage
| representation / realization |
| SFP Transceiver Type |
Copper |
| Maximum data transfer rate |
1000 Mbit/s |
| Interface type |
SFP |
| SFP Transceiver Standard |
TX |
| Maximum transfer distance |
100 m |
| Ethernet/LAN |
Yes |
| Network standards |
IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u |
| Number of LAN ethernet ports (RJ-45) |
1 |
| Double-sided system |
Complete |
| Auto MDI/MDI-X |
Yes |
| Automatic negotiation |
Yes |
| Digital Diagnostics Monitoring (DDM) |
No |
| Features
|
| Product color |
Money |
| Case/Body Material |
Aluminum |
| Hot-Plug Support |
Yes |
| Mean time between failures |
4655371 h |
| Power
|
| Typical power consumption |
1.3 W |
| Environmental conditions
|
| Operating temperature |
0 - 70 °C |
| Non-operating temperature |
-40 - 85 °C |
| Operating relative humidity (HH) |
5 - 95% |
| Weight and dimensions
|
| Width |
18 mm |
| Depth |
68 mm |
| Height |
13.8 mm |
| Weight |
21 g |
| Packaging information
|
| Number of products included |
1 piece(s) |
| Package width |
118 mm |
| Package depth |
93 mm |
| Package height |
35 mm |
| Package weight |
51 g |
| Technical details
|
| Sustainability certificates |
CE, RoHS |
| Logistics data
|
| Main locker width (external) |
260 mm |
| Main locker length (external) |
305 mm |
| Harmonized System Code |
85369010 |
| Height of main locker (external) |
205 mm |
| Produced by main (external) locker |
36 piece(s) |
