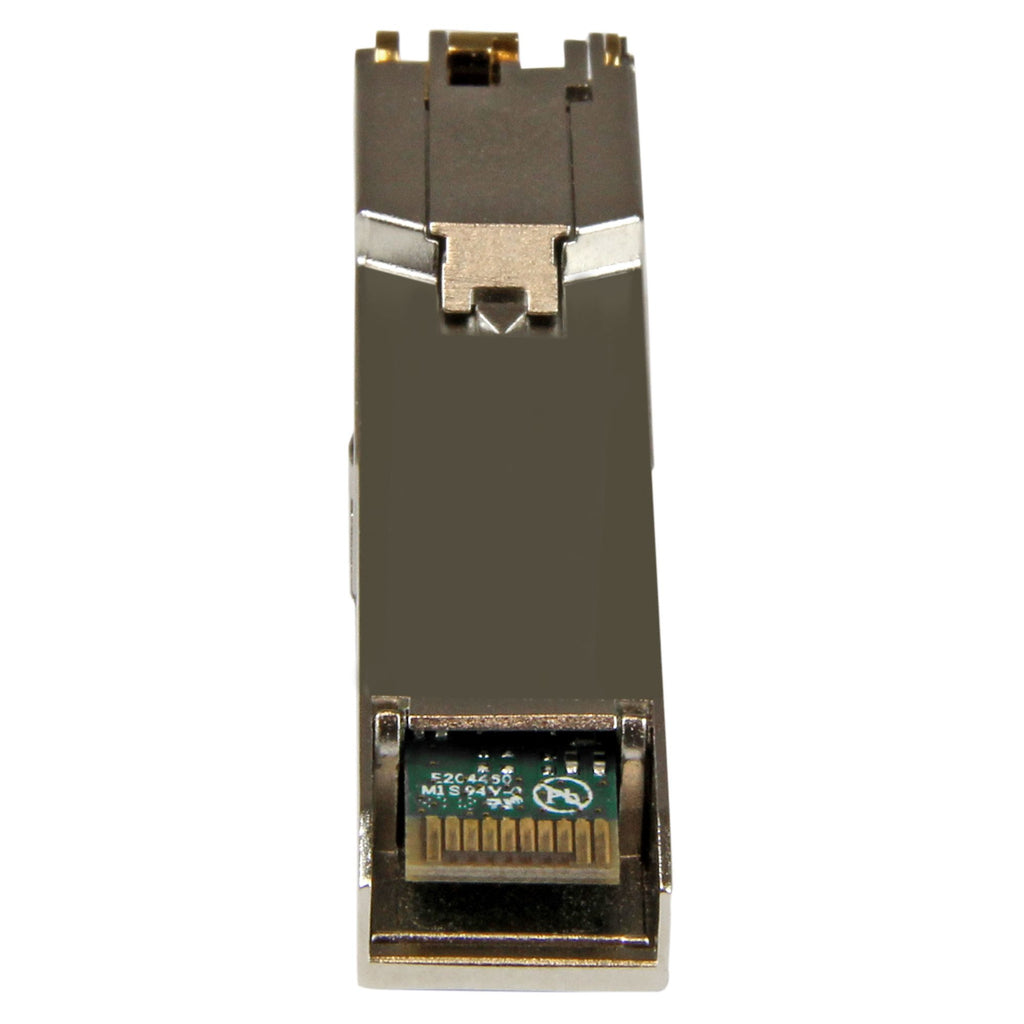

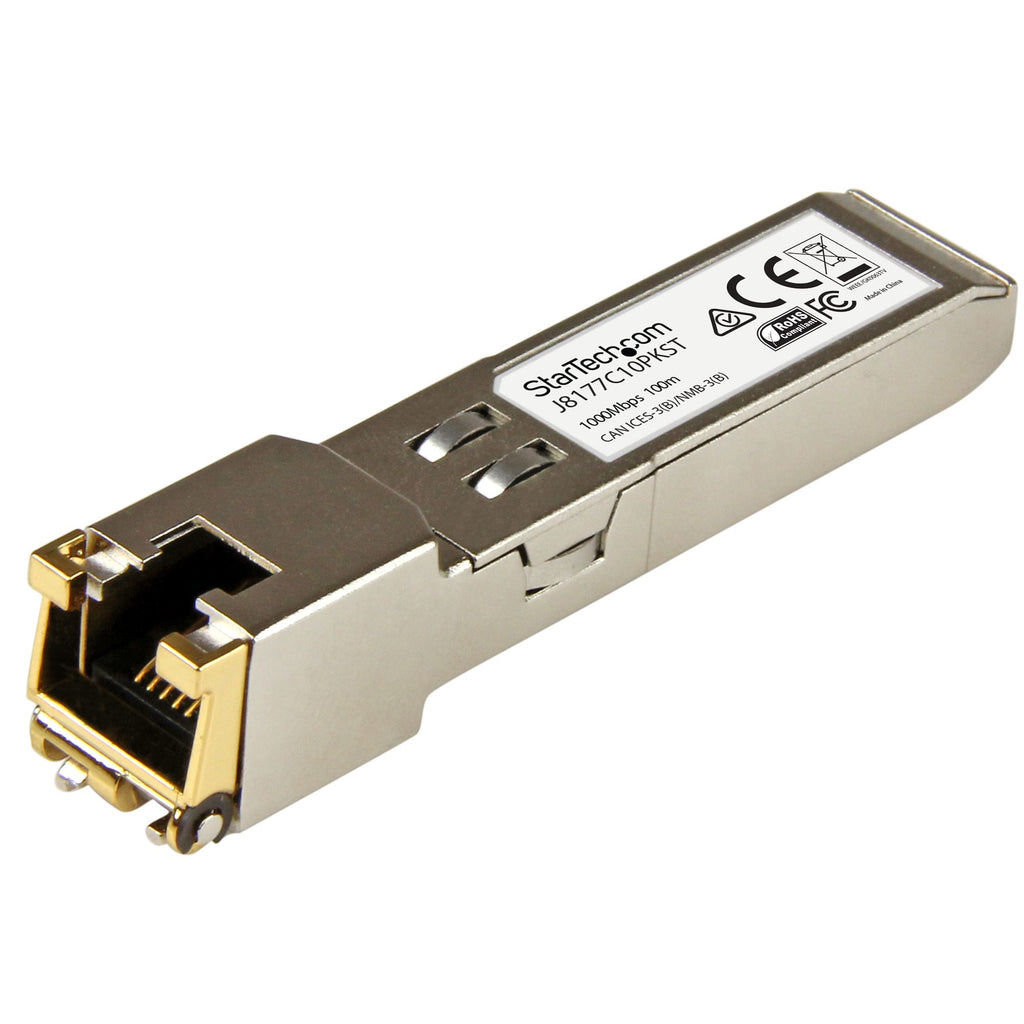

1000 Mbps (1 Gbps) | Copper | RJ45 | 100m | Lifetime WarrantyThe J8177C10PKST bundle includes ten copies of our HPE J8177C compatible copper transceiver module, which has been designed, programmed and tested to work with HPE© brand switches and routers. It provides reliable 1GbE connectivity over fiber optic cable for networks compliant with 1000BASE-T specifications, with a maximum distance of 100 m.Technical specifications:• Maximum transfer speed: 1000 Mbps• Type: Copper• Type connection: RJ45 connector • Maximum transfer distance: 100 m • MTBF: 4,655,371 hours • Power consumption: less than 1.3 watts • Digital diagnostics control (DDM): no This copper SFP module is hot swappable, this which facilitates upgrades and replacements while minimizing network interruptions. StarTech.com SFP All StarTech.com SFP modules and SFP+ transceiver modules are backed by a lifetime warranty and free lifetime technical support in many languages. StarTech.com offers a wide variety of direct-attach SFP modules and SFP cables that give you the ergonomics and reliability you need to ensure reliable network performance.The StarTech.com Advantage
| representation / production |
| SFP transceiver type |
Copper |
| Maximum data transfer rate |
1000 Mbps |
| Interface Type |
SFP |
| Optical fiber connector |
MiniGBIC |
| Maximum transfer distance |
100m |
| Network standards |
IEEE 802.3ab |
| Number of LAN ethernet ports (RJ-45) |
1 |
| Auto MDI/MDI-X |
Yes |
| Automatic negotiation |
Yes |
| Digital Diagnostic Monitoring (DDM) |
No |
| Features
|
| Product color |
Money |
| Housing/Body Material |
Aluminum |
| Hot Swap |
Yes |
| Mean time between failures |
4655371 h |
| Certification |
CE, FCC |
| Power
|
| Typical power consumption |
1.3W |
| Environmental conditions
|
| Operating temperature |
0 - 70°C |
| Non-operating temperature |
-40 - 85°C |
| Relative operating humidity (HH) |
30 - 75% |
| Weight and dimensions
|
| Width |
13mm |
| Depth |
67mm |
| Height |
14mm |
| Weight |
220g |
| Packaging information
|
| Number of products included |
10 pieces) |
| Package width |
209mm |
| Package depth |
120mm |
| Package height |
38mm |
| Package weight |
279g |
| Technical details
|
| Sustainability certificates |
RoHS |
| Logistics data
|
| Width of main locker (external) |
340mm |
| Length of main locker (external) |
420mm |
| Harmonized System Code |
85369010 |
| Height of main (external) locker |
340mm |
| Produced by main (external) locker |
45 piece(s) |
