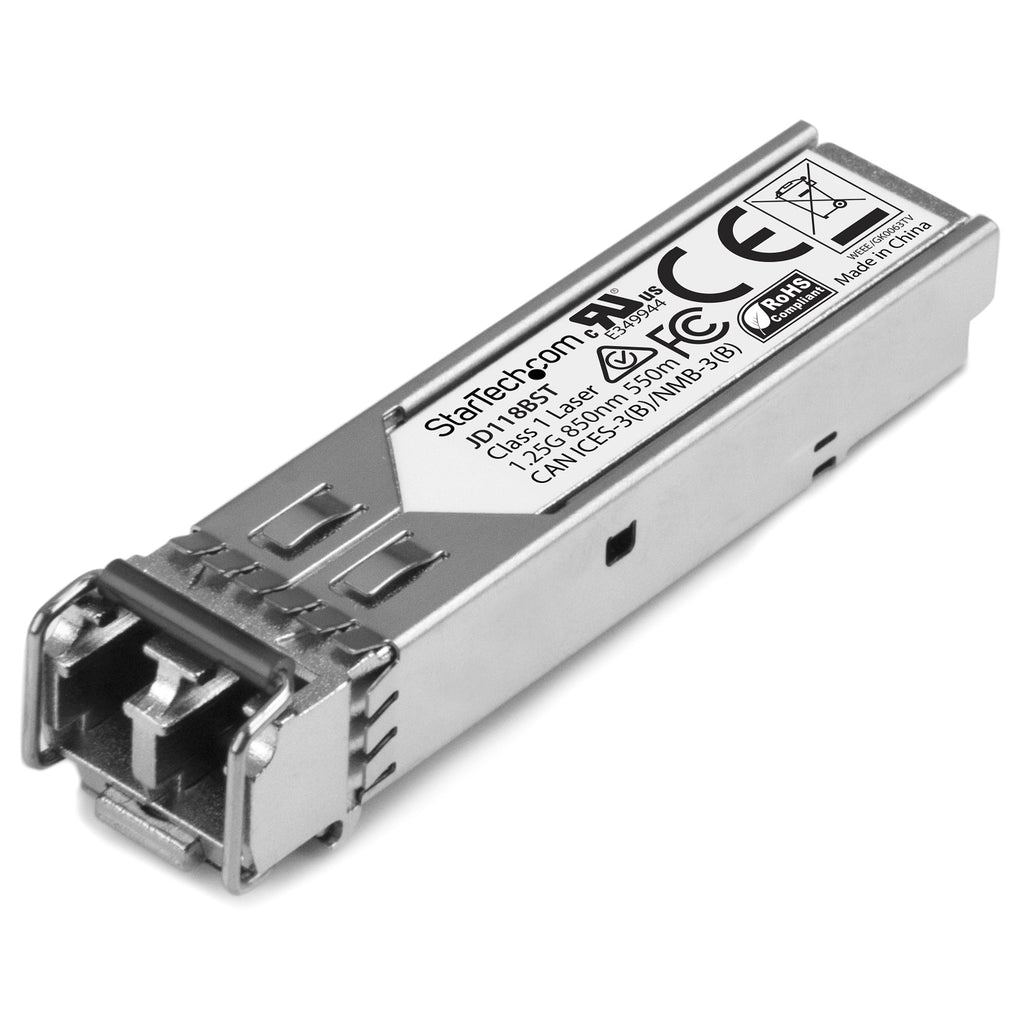

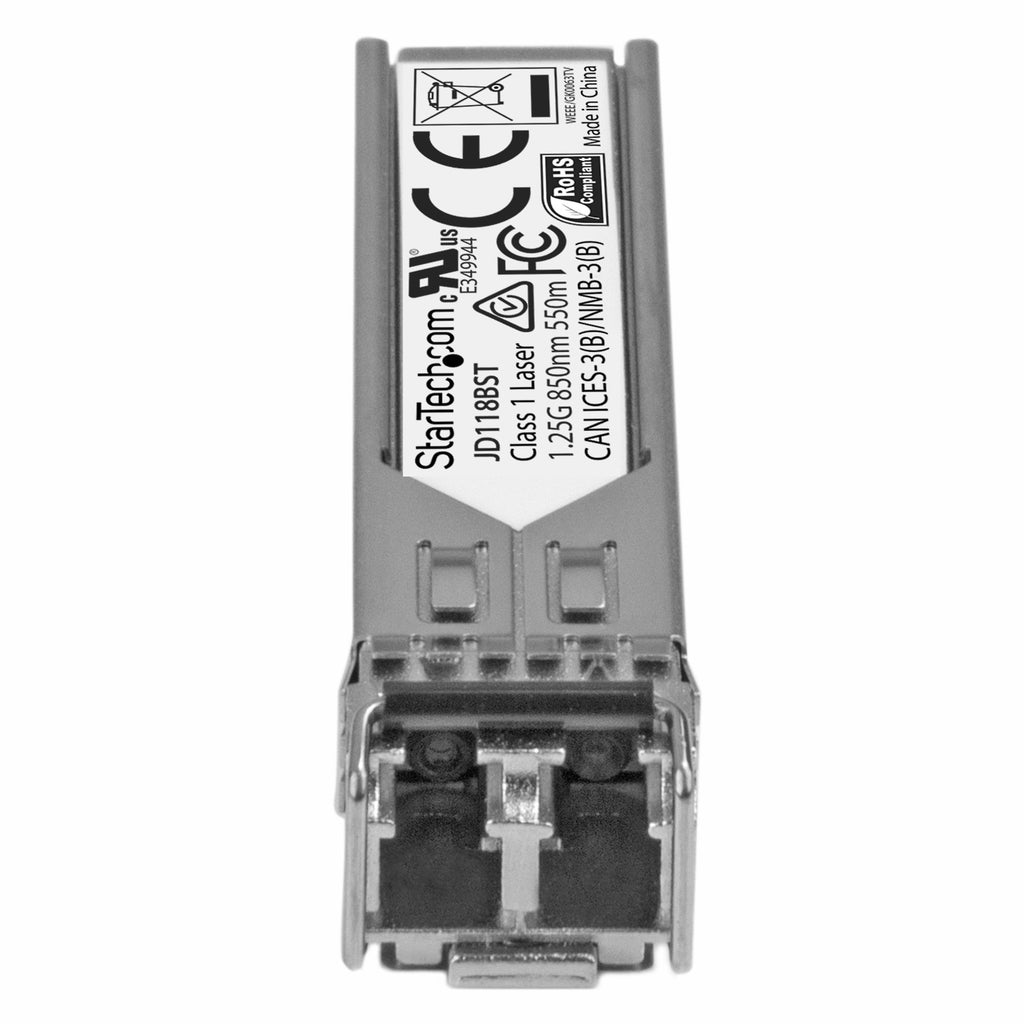

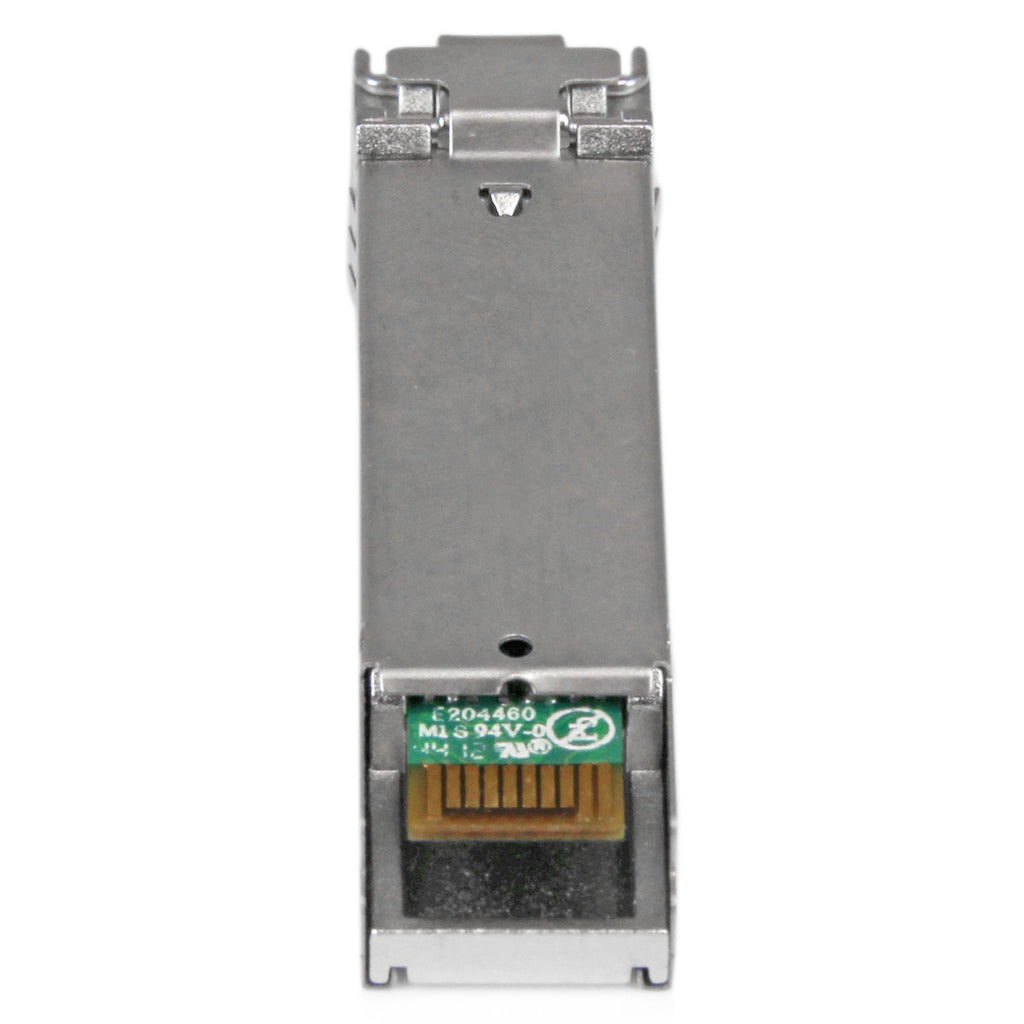

1000 Mbps (1 Gbps) | Multimode Fiber | LC | 550 m | Lifetime WarrantyThe JD118BST is an HPE JD118B compatible fiber optic transceiver module that has been designed, programmed, and tested to work with HPE© brand switches and routers. It provides reliable 10GbE connectivity over fiber optic cable for 1000BASE-SX compliant networks, with a maximum distance of 550 m.Technical Specifications:• Wavelength: 850 nm• Maximum Data Rate: 1.25 Gbps• Type: Multimode fiber• Connection Type: LC connector• Maximum Transfer Distance: 550 m• MTBF: 3,381,761 hours• Power Consumption: Less than 1 watt• Digital Diagnostics Monitoring (DDM): YesThis fiber optic SFP module is hot-swappable, making upgrades and replacements easy and minimizing network disruptions.StarTech.com SFPAll StarTech.com SFP modules and SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multi-language technical support. StarTech.com offers a wide variety of SFP modules and direct attach SFP cables, giving you the convenience and reliability you need to ensure dependable network performance.The StarTech.com Advantage
| representation / realization |
| SFP Transceiver Type |
Optical fiber |
| Maximum data transfer rate |
1250 Mbit/s |
| Interface type |
SFP |
| Multi-module fiber (FMM) compatible |
Yes |
| Fiber optic connector |
LC |
| SFP Transceiver Standard |
SX |
| Maximum transfer distance |
550 m |
| Wavelength |
850 nm |
| Network standards |
IEEE 802.3z |
| Double-sided system |
Complete |
| Digital Diagnostics Monitoring (DDM) |
Yes |
| Features
|
| Product color |
Money |
| Case/Body Material |
Aluminum |
| Hot swapping |
Yes |
| Mean time between failures |
3381761 h |
| Country of origin |
China |
| Certification |
CE, FCC, UR |
| Power
|
| Typical power consumption |
1 W |
| Environmental conditions
|
| Operating temperature |
0 - 70 °C |
| Non-operating temperature |
-40 - 85 °C |
| Operating relative humidity (HH) |
5 - 95% |
| Weight and dimensions
|
| Width |
13.7 mm |
| Depth |
56.6 mm |
| Height |
12.5 mm |
| Weight |
18 g |
| Packaging information
|
| Number of products included |
1 piece(s) |
| Package width |
118 mm |
| Package depth |
93 mm |
| Package height |
32 mm |
| Package weight |
46 g |
| Technical details
|
| Sustainability certificates |
RoHS |
| Logistics data
|
| Main locker width (external) |
250 mm |
| Main locker length (external) |
300 mm |
| Harmonized System Code |
85369010 |
| Height of main locker (external) |
203 mm |
| Produced by main (external) locker |
36 piece(s) |
