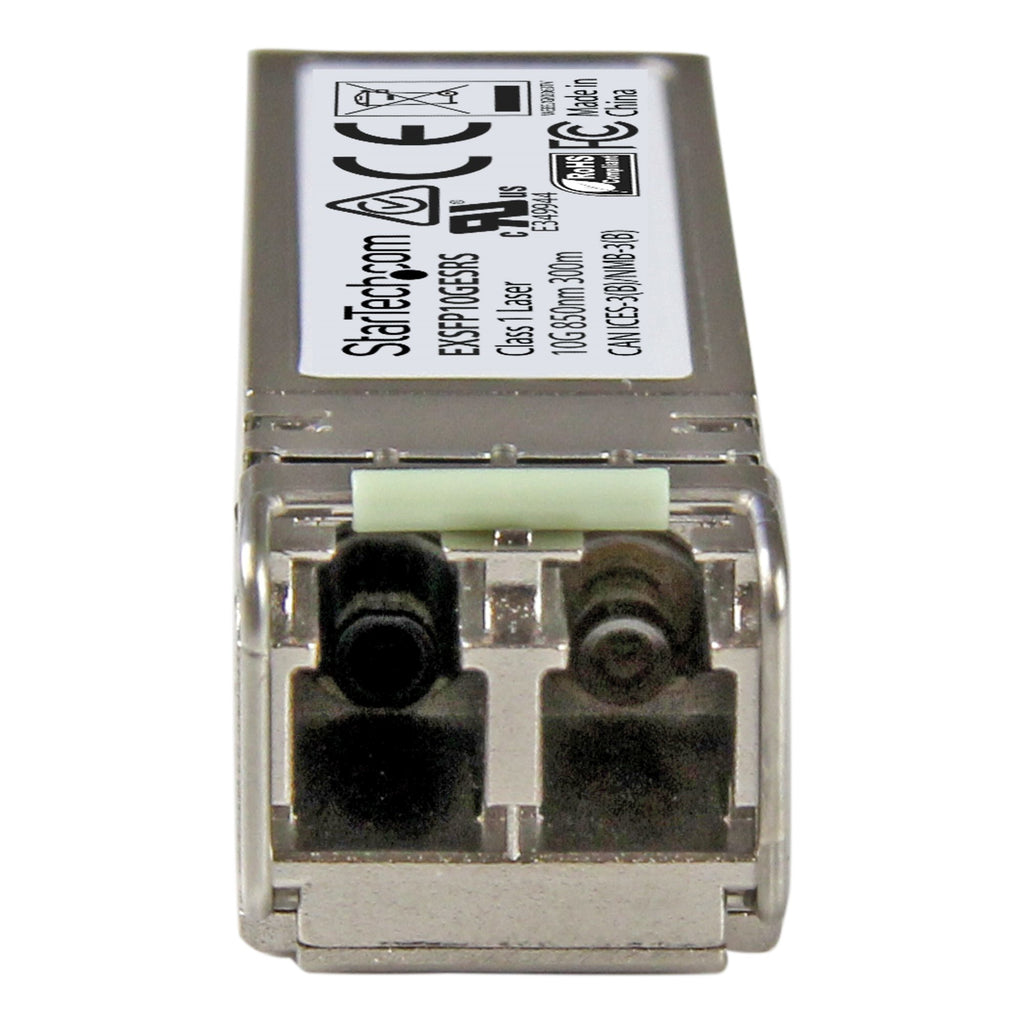

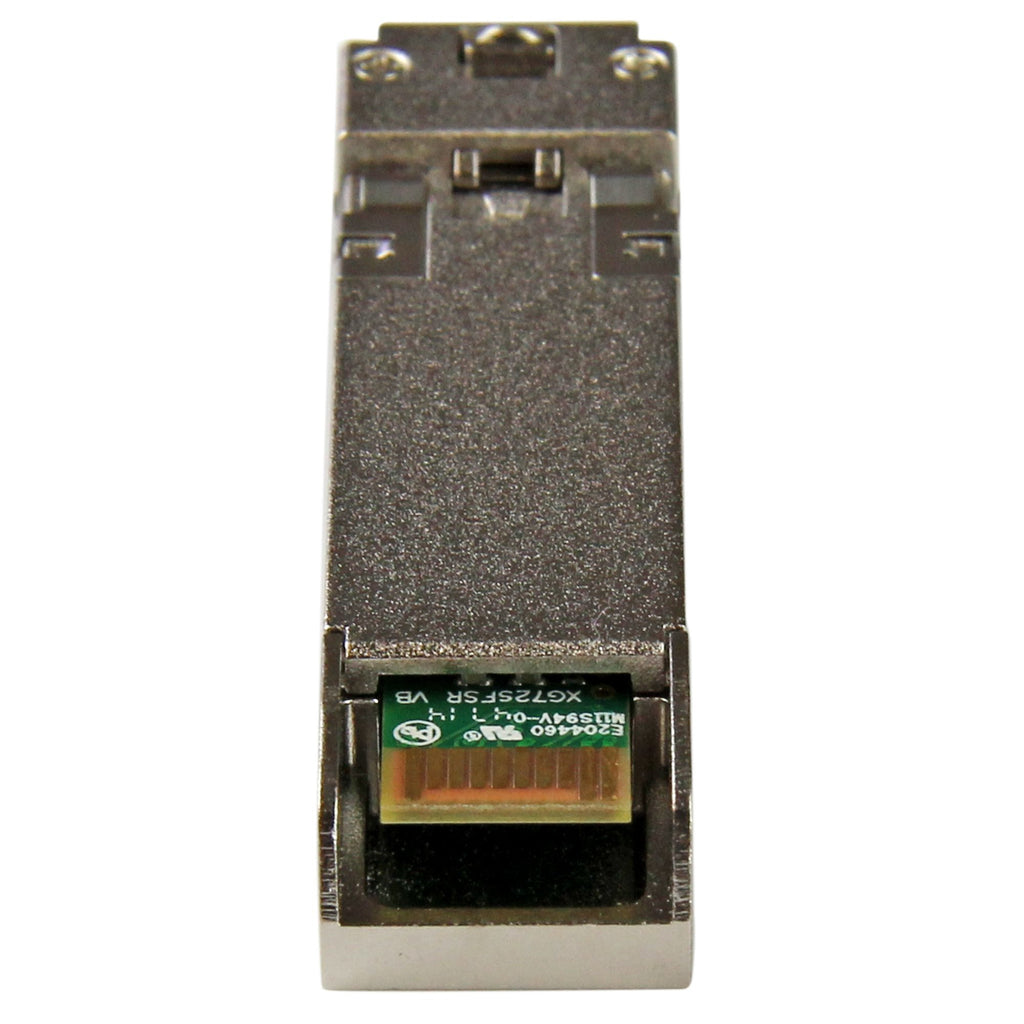

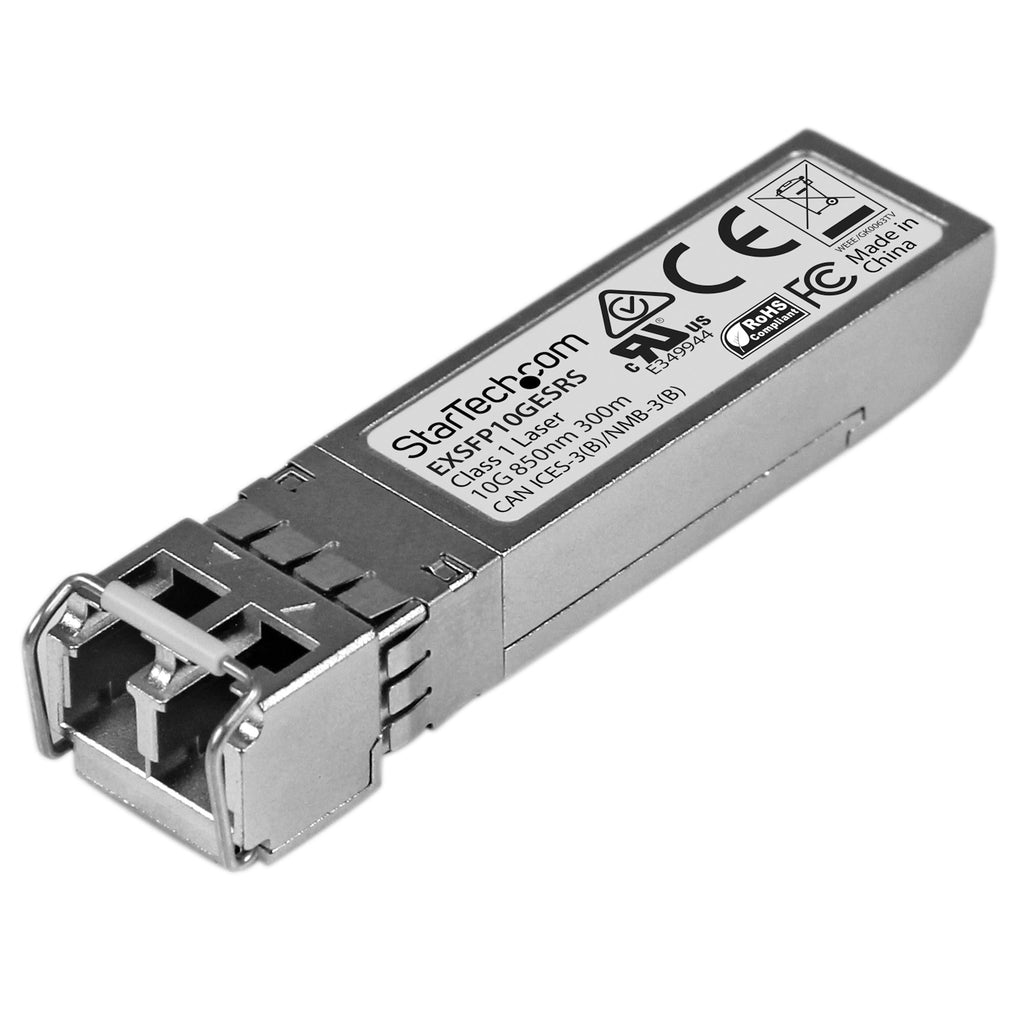

10Gbps | Multimode fiber | LC | 300m | Lifetime WarrantyThe EXSFP10GESRS model is a fiber optic transceiver module compatible with Juniper EX-SFP-10GE-SR, which has been designed, programmed and tested to work with Juniper© brand switches and routers. It provides reliable 10 GbE connectivity over fiber optic cable for networks compliant with 10GBASE-SR specifications, with a maximum distance of 300 m. Technical specifications: • Wavelength: 850 nm • Maximum transfer speed: 10 Gbps s• Type: Multimode optical fiber• Connection type: LC connector• Maximum transfer distance: 300 m• MTBF: 1,967,709 hours• Power consumption: Less than 1.2 watts• Digital diagnostics control (DDM): YesThis module SFP+ fiber optic is hot-swappable, making upgrades and replacements easy while minimizing network interruptions.StarTech.com SFP All StarTech.com SFP+ SFP modules and transceiver modules are backed by a lifetime warranty and free lifetime technical support in multiple languages. StarTech.com offers a wide variety of direct-attach SFP modules and SFP cables that give you the ergonomics and reliability you need to ensure reliable network performance.The StarTech.com Advantage
| representation / production |
| SFP transceiver type |
Optical fiber |
| Maximum data transfer rate |
10000 Mbps |
| Interface type |
SFP+ |
| Multi-module fiber (FMM) compatible |
Yes |
| Optical fiber connector |
L.C. |
| SFP Transceiver Standard |
SR |
| Maximum transfer distance |
300m |
| Wave length |
850nm |
| Network standards |
IEEE 802.3ae |
| Double-sided system |
Complete |
| Digital Diagnostic Monitoring (DDM) |
Yes |
| Wavelength multiplexing |
No |
| Features
|
| Product color |
Money |
| Housing/Body Material |
Aluminum |
| Hot Swap |
Yes |
| Mean time between failures |
1967709 h |
| Native country |
China |
| Certification |
CE, FCC, UR |
| Power
|
| Typical power consumption |
1.2W |
| Environmental conditions
|
| Operating temperature |
0 - 70°C |
| Non-operating temperature |
-40 - 85°C |
| Relative operating humidity (HH) |
5 - 95% |
| Weight and dimensions
|
| Width |
13.9mm |
| Depth |
58.4mm |
| Height |
12.6mm |
| Weight |
19g |
| Packaging information
|
| Number of products included |
1 piece(s) |
| Package width |
119mm |
| Package depth |
93mm |
| Package height |
33mm |
| Package weight |
47g |
| Technical details
|
| Sustainability certificates |
RoHS |
| Logistics data
|
| Width of main locker (external) |
365mm |
| Length of main locker (external) |
410mm |
| Harmonized System Code |
85369010 |
| Height of main (external) locker |
345mm |
| Produced by main (external) locker |
100 piece(s) |
