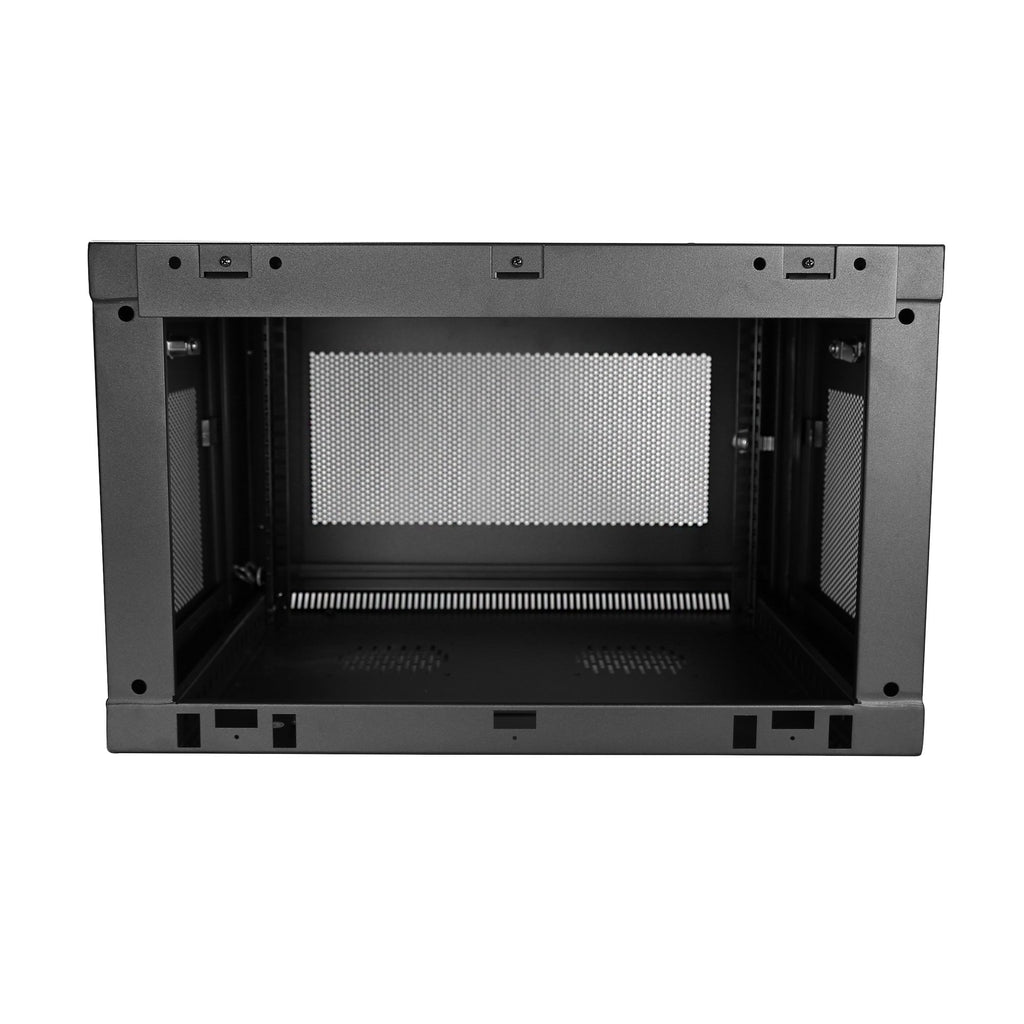

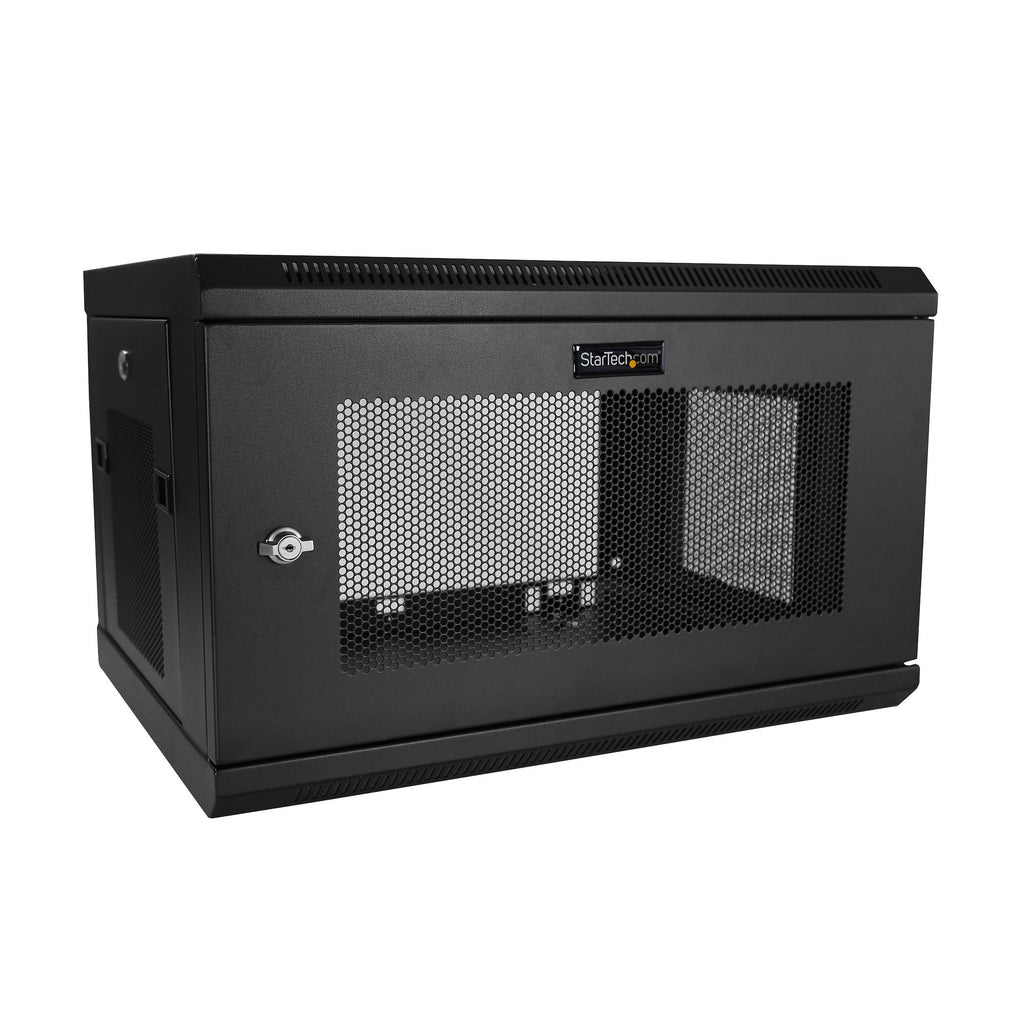

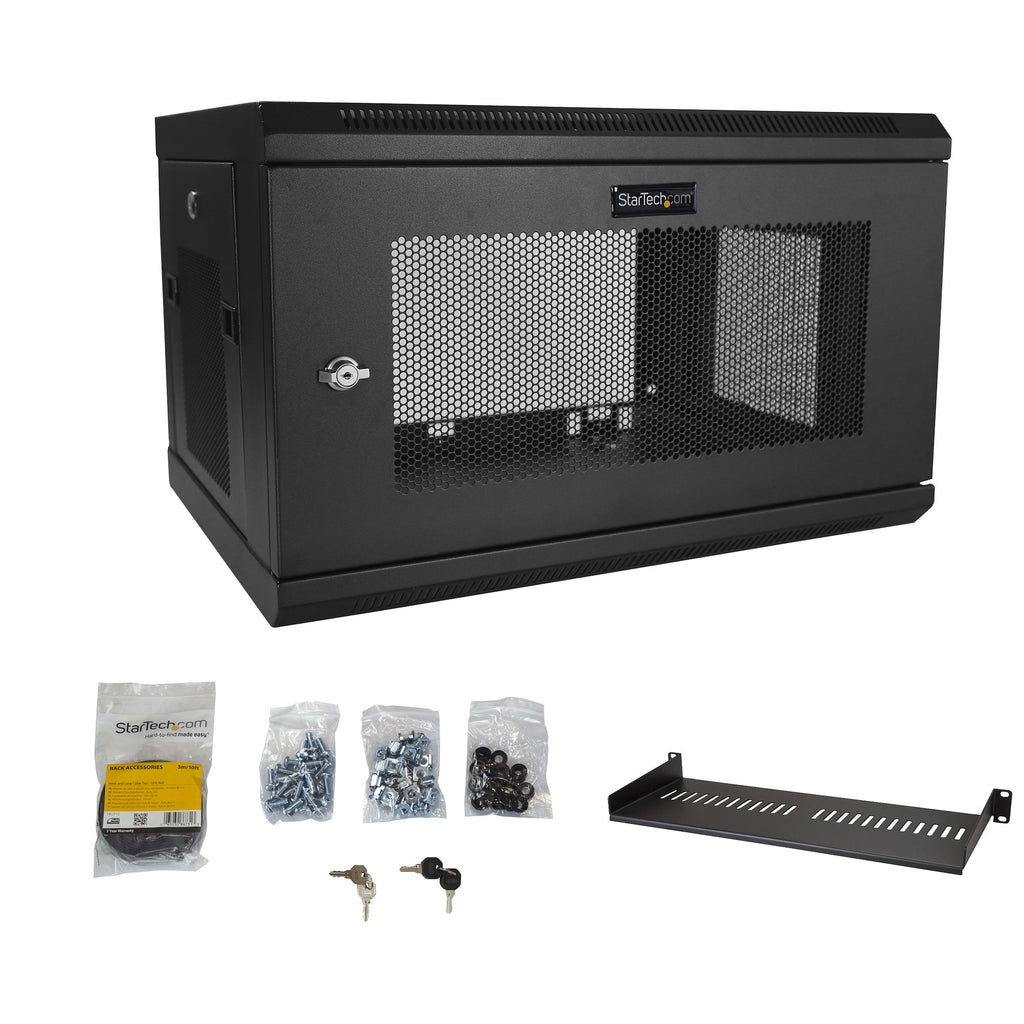

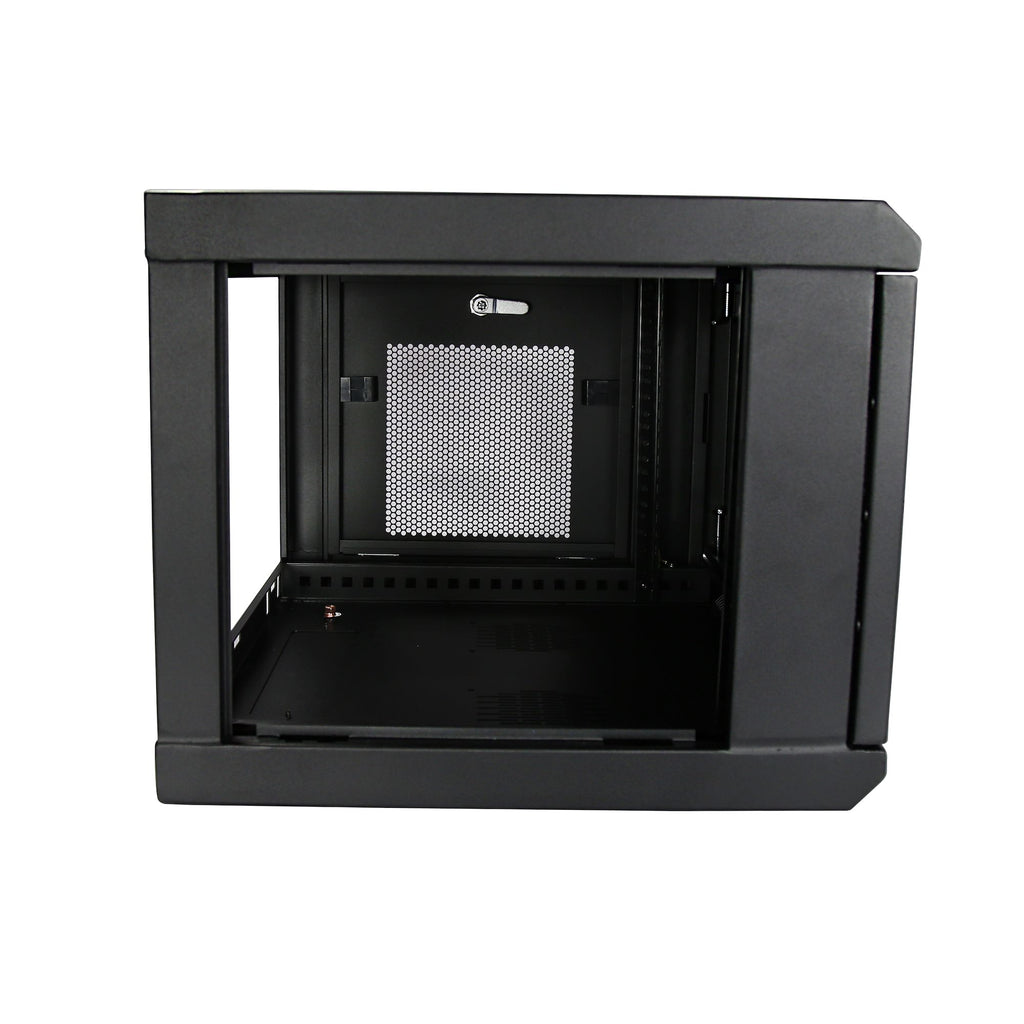

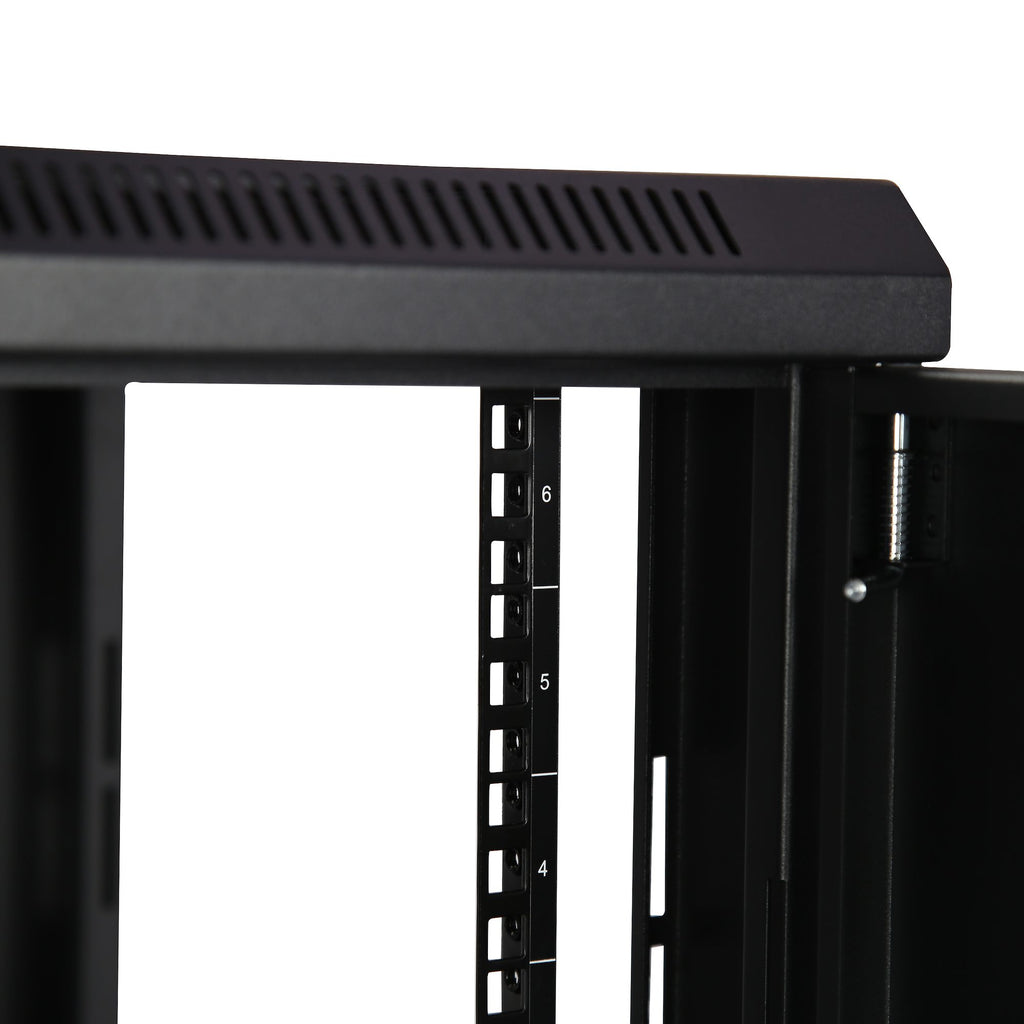

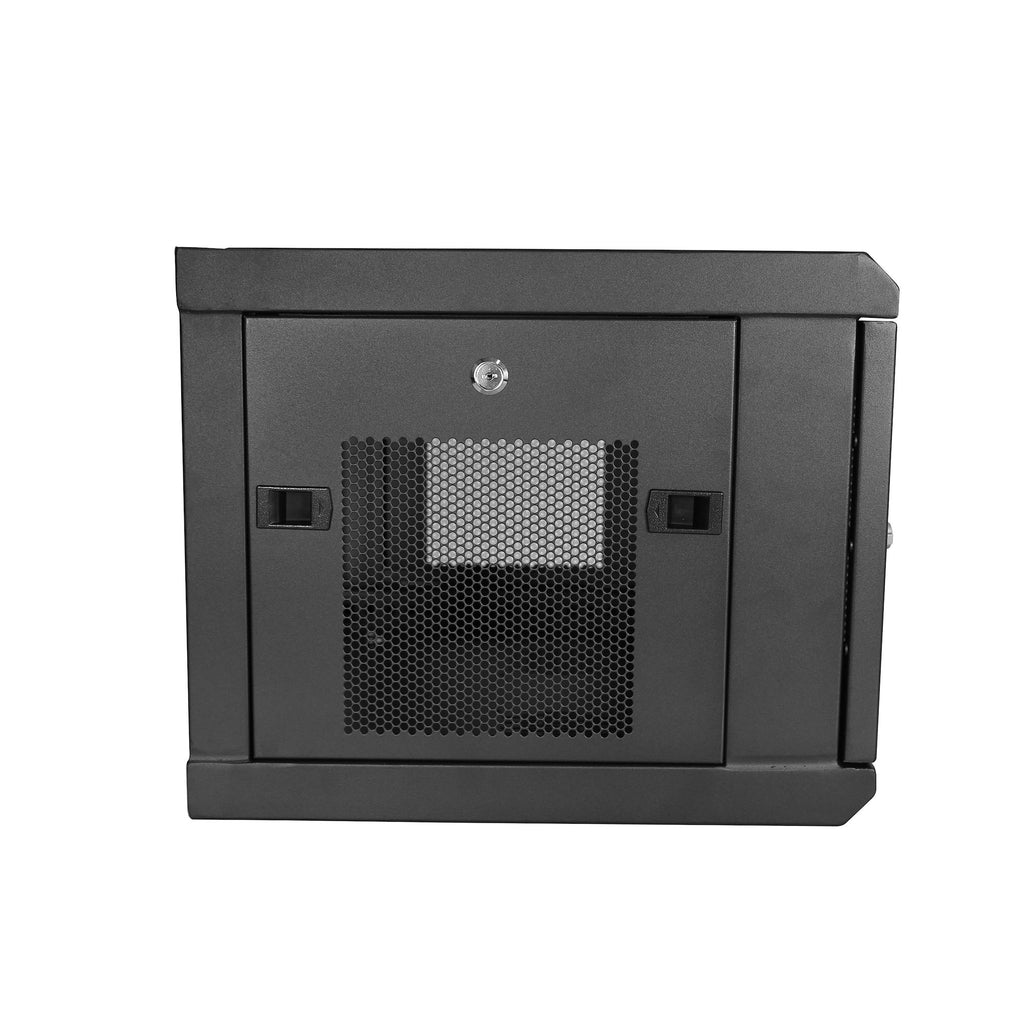

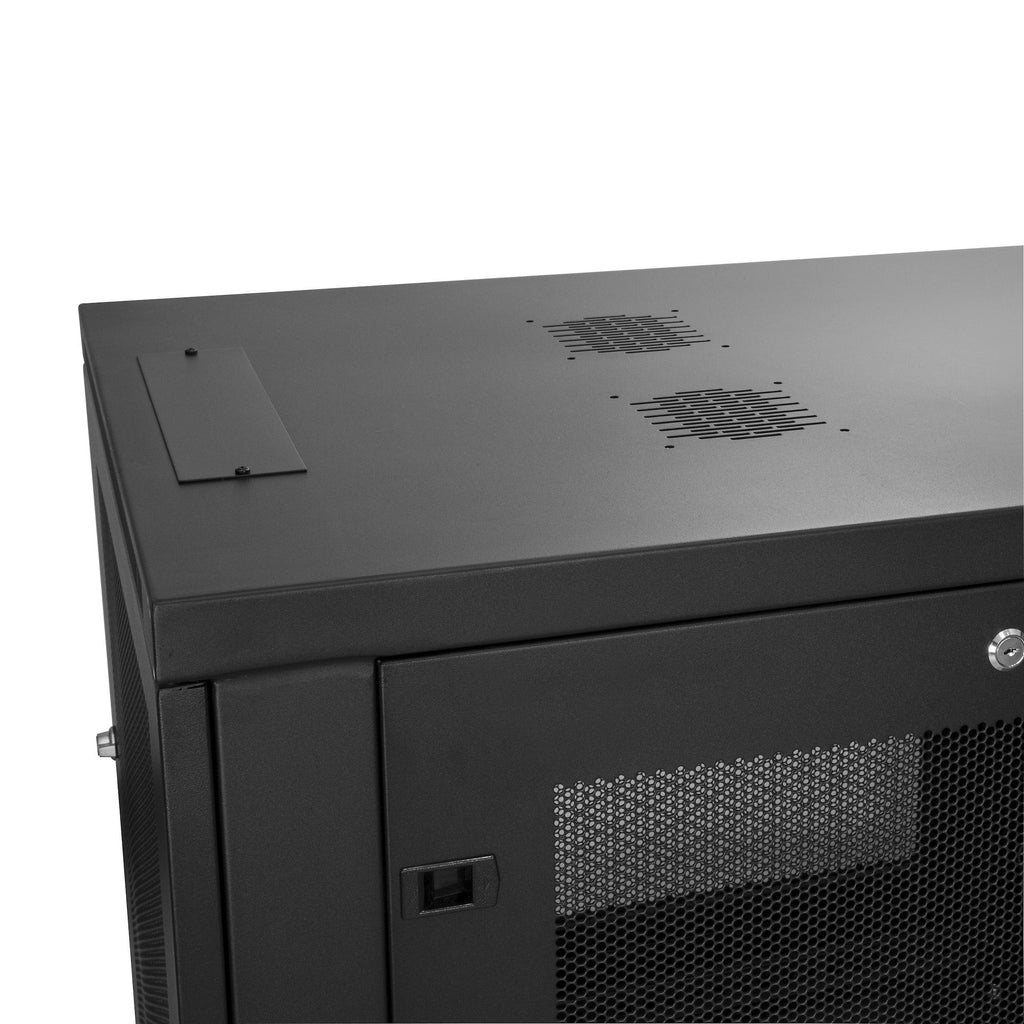

Use this wall mount network cabinet to mount your server or network equipment to the wall. This 6U server cabinet allows you to mount your EIA-310 compliant equipment to the wall. The enclosure has a mounting depth of up to 15 inches and offers a maximum load capacity of 200 pounds.Save space in your office or server roomSave floor space by mounting the box on the wall. The wall-mount design makes this enclosure the ideal solution for optimizing equipment storage in your classroom, shop, server room or office. This rack also includes a 1U shelf that provides a stable surface ideal for storing your tools or placing non-rack-mountable equipment. Easily install your servers and network equipment The wall-mount network rack makes it easy to install your equipment with Two-post mounting rails that can be positioned to create more space at the front or rear of the enclosure depending on your needs. The 6U network cabinet features a removable and reversible front door and side panels removable, each with quick-lock mechanisms, so you can easily access your equipment. Additionally, the rack doors and panels are equipped with independent locking for the security of your equipment. The wall mount server rack also includes all the cage nuts and mounting screws you'll need to accommodate your equipment, saving you time and avoiding mounting hardware issues. To simplify server management cables, the rack includes a 3m roll of hook-and-loop cable ties that make it easy to store your cables by connecting them together or securing them to the rack. The hook-and-loop material can be cut to size, providing an ideal solution for cables for all rack-mounted equipment. Protect and secure your equipmentThis server rack enclosure features extra-strong steel construction, with lockable doors for all entrances. To simplify the installation of the equipment; Rack mounting rails can be configured with square holes and cage nuts, or perforated rails. To ensure your equipment is operating at optimal temperature, the server cabinet uses passive cooling. It is equipped with mesh doors and ventilated top and bottom panels to optimize air circulation. For simple and robust assembly, the rack's mounting holes are 40 cm apart, allowing you to easily attach it to the wall.The RK616WALM is backed by the StarTech.com 5-year warranty and free lifetime technical support.The StarTech.com Advantage
| Features |
| Rack Capacity |
6U |
| Kind |
Rack mounted on the wall |
| Maximum load capacity |
90 kg |
| Product color |
Black |
| Material |
Steel |
| Frame type |
Farm |
| Product design |
2 positions |
| Construction of the rear door |
Steel |
| Construction of the front door |
Steel |
| Side panel construction |
Steel |
| Removable front door |
Yes |
| Key lock |
Yes |
| Keyed lock for front door |
Yes |
| Keyed side panel lock |
Yes |
| Optimized cable management |
Yes |
| Certification |
CE, REACH |
| Weight and dimensions
|
| Width |
600mm |
| Depth |
450mm |
| Height |
371mm |
| Internal width |
59.4cm |
| Interior depth |
45cm |
| Weight |
17.6 kg |
| Mounting depth (max) |
37.5cm |
| Packaging information
|
| Nuts supplied |
Yes |
| Number of nuts |
24 |
| Screws included |
Yes |
| Number of screws |
24 |
| User Manual |
Yes |
| Package width |
525mm |
| Package depth |
675mm |
| Package height |
450mm |
| Package weight |
19.6 kg |
| Technical details
|
| Sustainability certificates |
RoHS |
| Logistics data
|
| Harmonized System Code |
85381000 |
| Width of main locker (external) |
525mm |
| Length of main locker (external) |
675mm |
| Height of main (external) locker |
450mm |
| Produced by main (external) locker |
1 piece(s) |
| Other features
|
| Compliance with industrial standards |
EIA/ECA-310-E |
